Equipped With

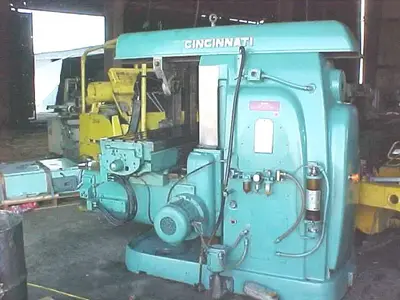

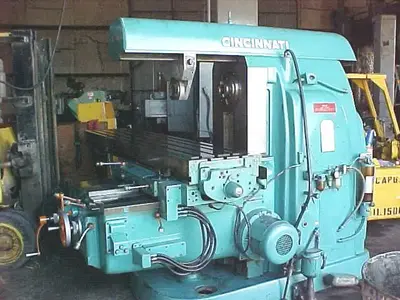

20" X 95" CINCINNATI MODEL 525 PLAIN HORIZONTAL MILLING MACHINE
New 1969
SPECIFICATIONS;
Table Size.....................................20" X 95"
Table Travel...................................52"
Table Cross Travel.............................16"
Spindle Taper..................................50"
Knee Travel Up & Down..........................20"
Spindle Speeds.................................14 To 1,400 Rpm's
Spindle To Table Min / Max.....................6-3/4" / 18-1/2'
Saddle And Table Feeds.........................3/8 To 90 I.P.M.
Rapids Long. & Cross...........................150 I.P.M.
Rapids Knee....................................37-1/2 I.P.M.
Main Motor.....................................25 Hp. 220 / 400 / 3
Floor Space....................................R-L 108" X F-B 110"
Machine Height.................................84"
Weight.........................................19,750 Lbs.
Wide Knee......................................Yes
Arbor Support (1)..............................Yes
Coolant........................................Yes
