NEW GMC DFM-20

Equipped With

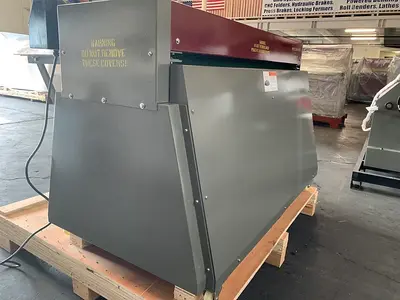

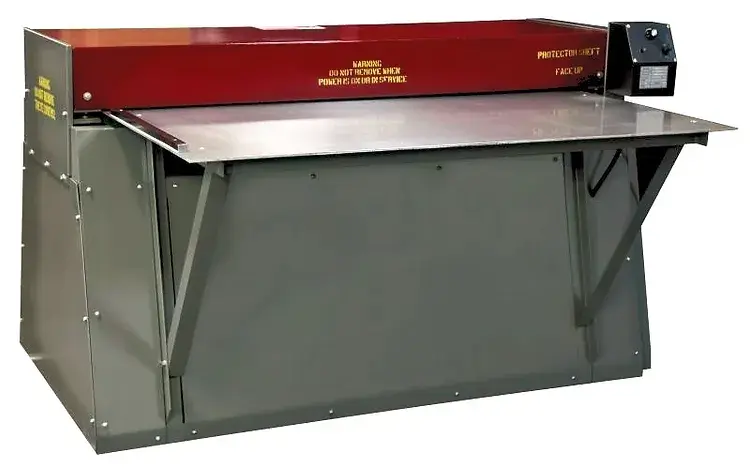

NEW GMC MODEL DFM-20 DIAMOND FORMING MACHINE
MACHINE FEATURES
ISO 9001 certified
1-Year parts only warranty
Emboss up to 4 foot stainless steel sheet metal x 20 Ga.
18” throat depth
Steel welded framework
High grade ball bearings

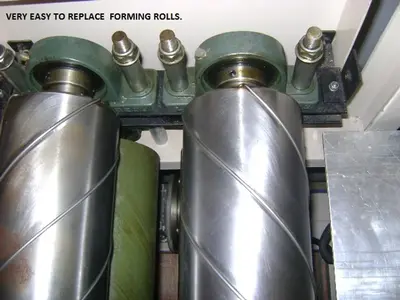

2 – Top forming steel rolls
2 – Bottom pressure rubber rolls
Variable speed control
Overload protection fuse
Infeed table with side gauge
Easy for one person operation
OPTIONAL DIAMOND EMBOSSED PATTERNS
2” x 2” Diamond Pattern ………….. Call for pricing
3” x 3” Diamond Pattern ………….. Call for pricing
MODEL#
DFM-20
Max. material capacity (width):
4 foot sheets (50")
Diamond Size:
3-7/8”x 3-7/8”
Max. material thickness:
20 Ga.
Variable speeds:
9-16 RPM
Motor:
2 HP - 110V / 60 HZ
Net Weight:
1,650 lbs.
Dimensions:
63" x 53" x 43"
