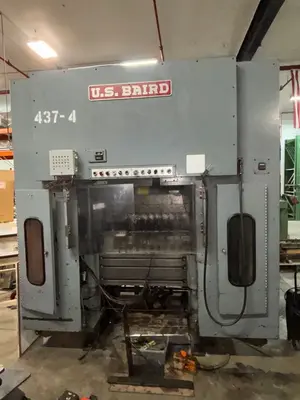

US Baird 4L37 Transfer Press 5" Stroke 12 Ops 2 Row Oscillating Feed Mint

Overview
Model:
4L37
Stock #:
19724
Specifications

Equipped With
US Baird 4L37 Transfer Press 5" Stroke 12 Ops 2 Row Oscillating Feed Mint
14 Station US Baird Die Set. But really a 12 station with 2 stations added to end. Works as a 14 op but you can't pound in the last 2 stations.

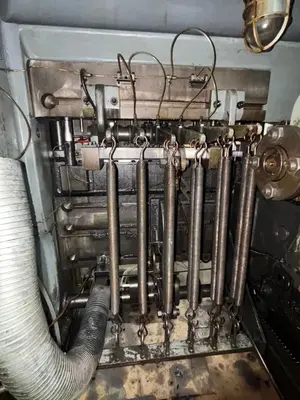

Stripper Fork System on Back Rack with 7 Forks and Rack Pull Down
* Upper rear of press frame mounted - new style
US Baird 2-3 Row Stagger Mechanical feed - excellent. Driven off secondary lower bottom shaft - not the main bottom shaft. Gives you more room on the bottom shaft for rockers and accessories.
Includes a Lou-Jan side stab / beader mount and cam drive set up. $20k in tooling there.
AC Inverter variable speed motor
Built in Die protection 14 station probe system
Steel sound enclosure.
SPECIFICATIONS:
Capacity                                                           45 Tons
Stroke                                                              5"
Approximate Dimensionts                               100" Wide x 70" Deep x 106" H
Approximate Weight                                        15,500 Lbs.
