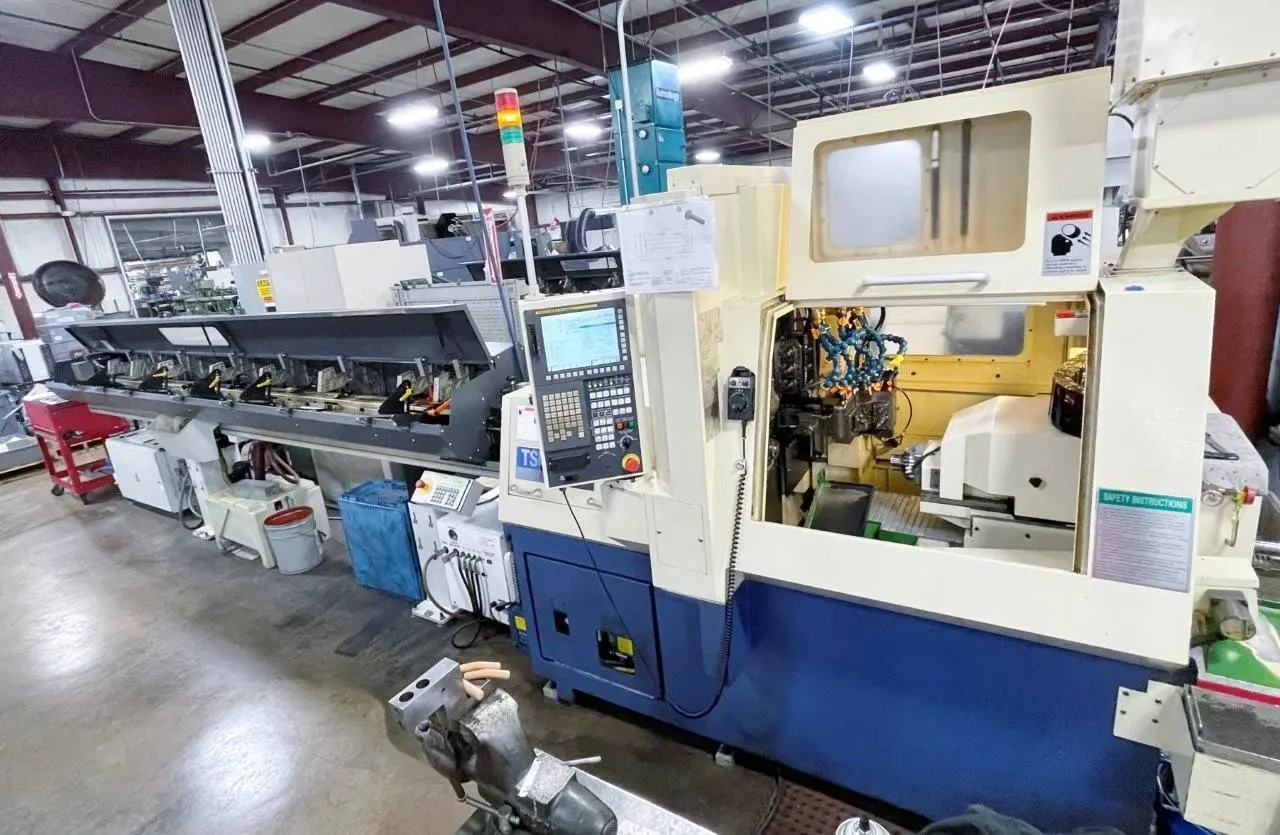

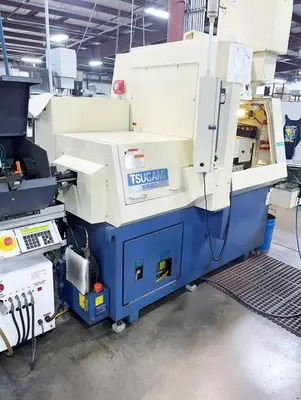

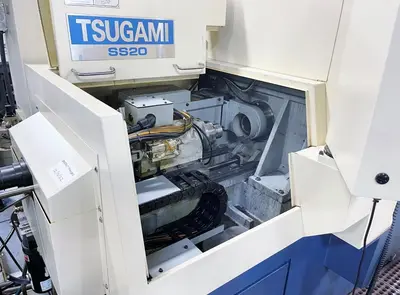

TSUGAMI SS20 CNC SWISS LATHE WITH FMB BARFEEDER

Equipped With
TSUGAMI SS20 CNC SWISS LATHE WITH FMB BARFEEDER
New 2008
Equipped With:

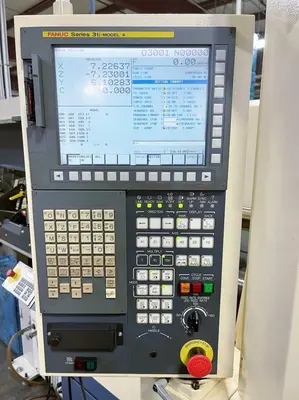

FANUC 31i CONTROL

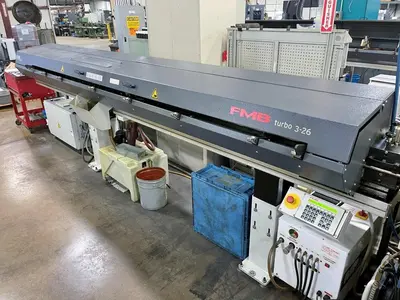

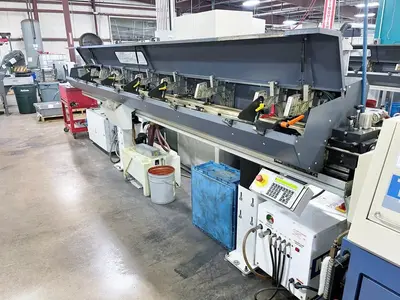

EDGE TECHNOLOGIES FMB TURBO 3-26 MAGAZINE BARFEEDER (12')

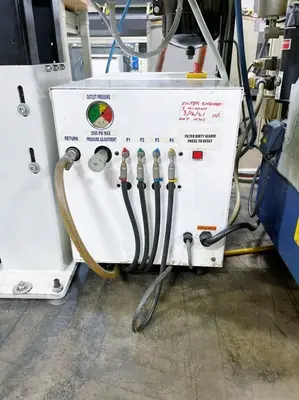

HIGH-PRESSURE COOLANT SYSTEM (2,000 PSI, 4-PORT)

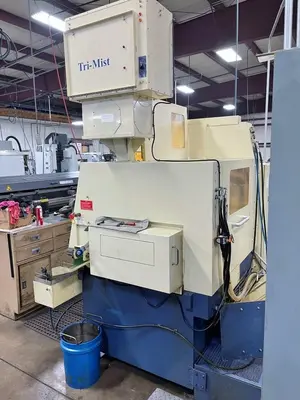

TRI-MIST MIST COLLECTOR

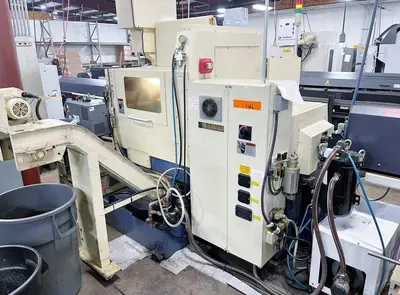

LNS TURBO CHIP CONVEYOR (REAR DISCHARGE)
PARTS CONVEYOR
PARTS CATCHER
FIRETRACE FIRE SUPPRESSION SYSTEM

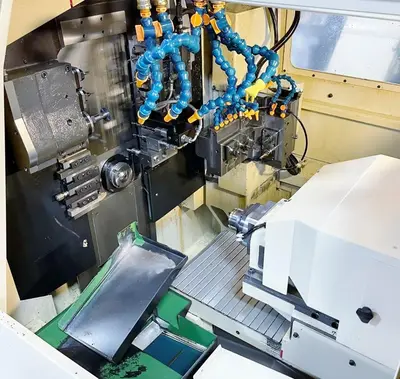

(6) STRAIGHT LIVE HOLDERS FOR MAIN SPINDLE
(2) STRAIGHT LIVE HOLDERS FOR SUB SPINDLE
TRANSFORMER

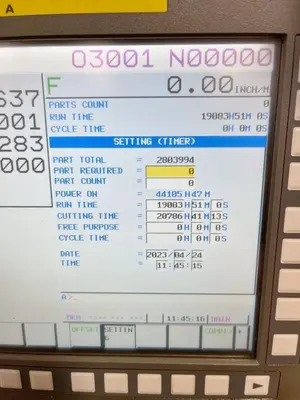

** AS OF APRIL 2023, CUTTING TIME - 20,786 HOURS
** MACHINE CUT PRIMARILY 12L14 SOFT STEEL
** REPLACEMENT COST, AS EQUIPPED - $230,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** SELLER HAS USED HANGSTERFERS FULL SYNTHETIC CUTTING OIL ONLY
Specifications:


BAR CAPACITY
20 mm
MAX MACHINING LENGTH
8.66"
MAX DRILLING DIAMETER
0.39"
MAIN SPINDLE MOTOR
5 hp
MAIN SPINDLE SPEED
10,000 RPM
BACK SPINDLE MOTOR
5 hp
BACK SPINDLE SPEED
10,000 RPM
TOTAL TOOL CAPACITY (POSITIONS)
24
LIVE TOOL SPEEDS
5,000 RPM
CONTROLLABLE AXES
7
Control
CNC (FANUC)
