USED 2007 AMADA EM-3610NT
Overview
Specs
Equipped With

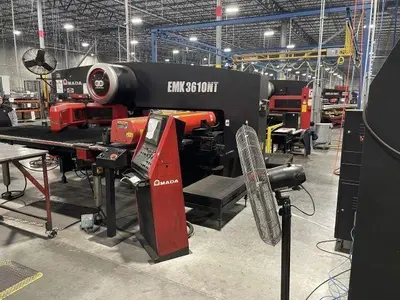

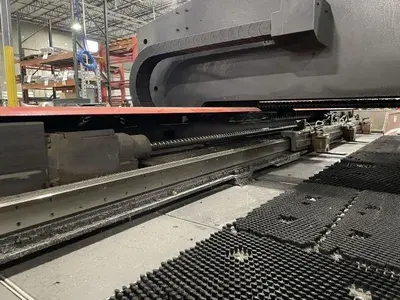

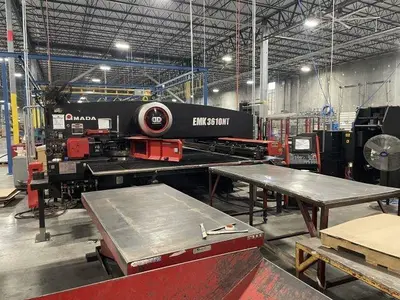

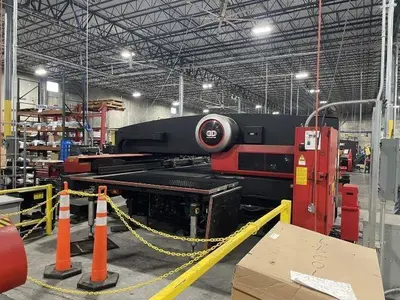

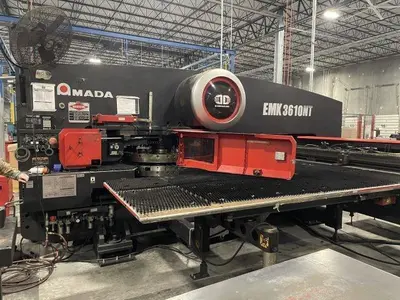

USED AMADA EMK-3610NT SERVO DRIVE (ELECTRIC) CNC TURRET PUNCH
New 2007
MODEL: EMK-3610NT
CAPACITY................................ 33 TONS
MAX SHEET SIZE.......................... 120" X 60"
THROAT DEPTH............................ 50"
TRAVELS (X-AXIS......................... 120"
TRAVELS (Y-AXIS......................... 60"
STROKE.................................. 1.45"
MAX SHEET THICKNESS..................... 187"
TURRET STATIONS......................... 58 W/ (4) A/I
TURRET TOOLING STYLE.................... THICK
TURRET ROTATION SPEED................... 30 RPM
FEED CLEARANCE.......................... .984"
EQUIPPED WITH:

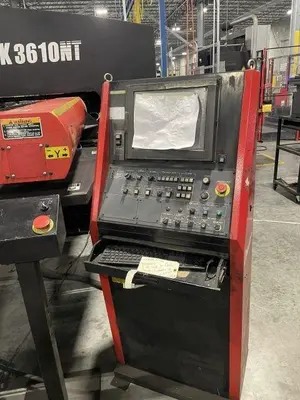

NT CONTROL
58 STATION TURRET W/ (4) AI
(3) WORK CLAMPS
BRUSH TABLE
SLUG CONVEYOR
Overall Size, Approximate: 210"(LR) X 245"(FB) X 95"(H)
Weight, Approximate: 44000 Lbs.
