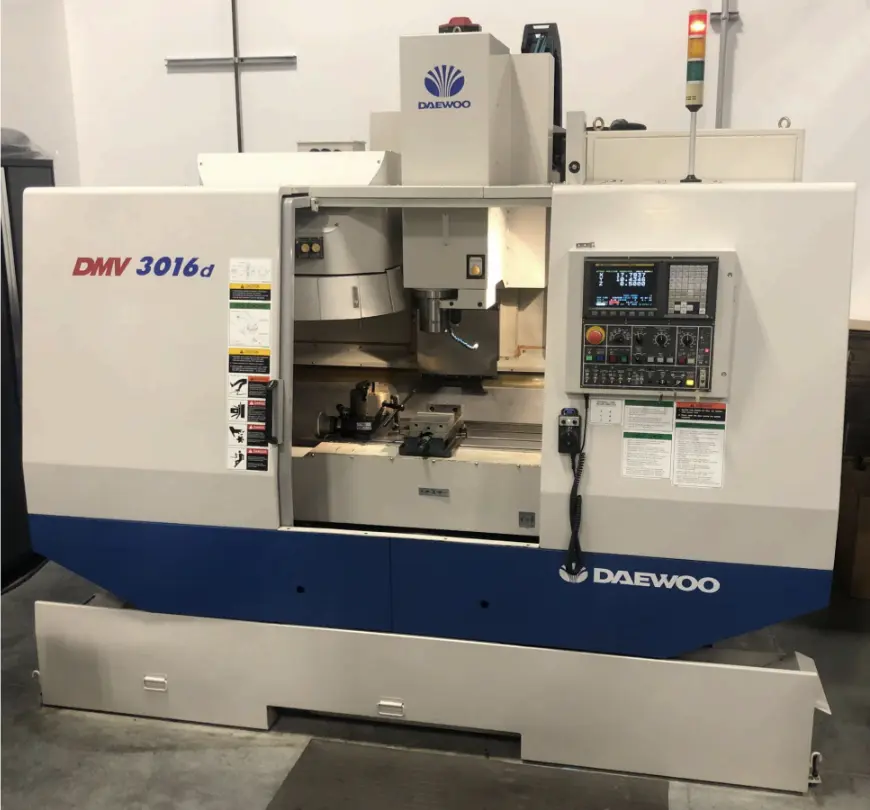

2004 DAEWOO DMV-3016D Vertical Machining Center, used. Features: 30"x16"x20" travels, 15HP with 8000 RPM, 24-tool ATC, CAT-40 taper, 16.9"x36" table. Perfect for precision machining needs.
| X | 32.3" | 820.42 mm |
| Y | 16.1" | 408.94 mm |
| Z | 20.1" | 510.54 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 17.7" | 449.58 mm |
| Table-L | 39.4" | 1,000.8 mm |
| Control | CNC | CNC |
Manufacturer: Daewoo (Daewoo Heavy Industries & Machinery Ltd. – Korea)
Model: DMV 3016D (now Doosan)
Year: 2004
Control: Fanuc 0i-MB
Travels
X-Axis: 820 mm (32.3")
Y-Axis: 410 mm (16.1")
Z-Axis: 510 mm (20.1")
Table
Table Size: 1000 mm × 450 mm (39.4" × 17.7")
Max Table Load: 600 kg
Spindle
Spindle Speed: 8,000 RPM
Spindle Motor: 15 HP
Tool Taper: CAT 40
Tool Changer
ATC: 20-Tool Automatic Tool Changer
Electrical
Voltage: 208–240 V
Phase: 3-Phase
Frequency: 60 Hz
Power Requirement: 35 kVA
Accuracy
Positional Accuracy: ±0.005 mm / full stroke
Repeatability: ±0.002 mm
Equipped With
Box way construction on X, Y, and Z axes
Flood coolant
Base coolant
Automatic lubrication system
Rigid tapping
Leveling pads
Numerous canned cycles
Part scaling, rotation, and mirror imaging
Engraving program
RS-232C I/O device
Clamping kit
