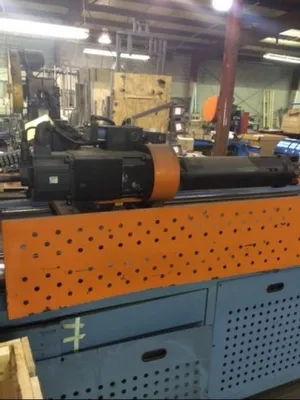

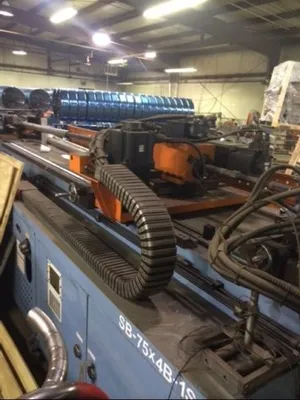

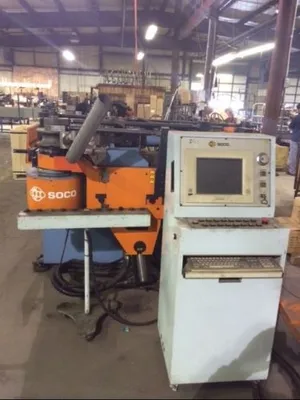

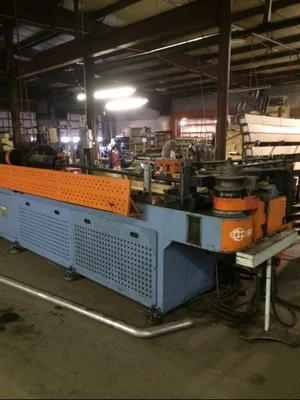

USED 2002 SOCO SYSTEM IS SB-75X4B-1S

Equipped With
3" SOCO MODEL SB-75X4B-1S CNC TUBE BENDING MACHINE
New 2002
EQUIPPED WITH:

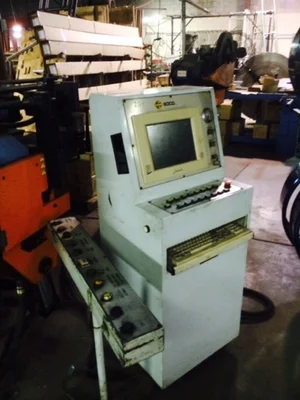

4-Axis Touch Screen CNC Control
Hydraulic Mandrel Extractor
Clamp & Pressure Die Holders
Programmable Plane of Bend Carriage
Overhead Tie Bar Support
Remote Operator Control Stand
SPECIFICATIONS:
Max. Steel Tube (.100" Wall x 1.5D 3" O.D.
Max. Steel Tube (.170" Wall x 1.5D 2.75" O.D.
Max. Stainless Tube (.120" x 1.5D) 2.75" O.D.
Maximum Bending Radius 10"
Maximum Feeding Stroke 112"
Maximum Bend Angle 190 Degrees
Number of Bends Per Tube 12 Bends
Bend Arm Speed 25 Deg./Sec.
Plane Of Bend Speed 160 Deg./Sec.
Feeding Speed 31.5"/Sec
Main Motor 30 HP
Approx. Dimensions 195" x 73" x 61"
Approx. Weight 16,060 Lbs.
