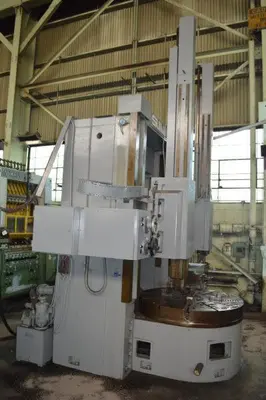

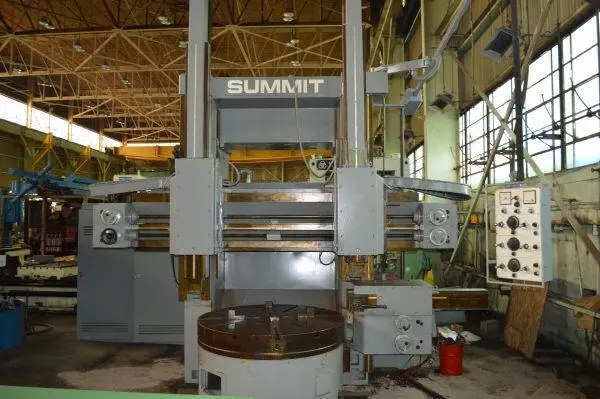

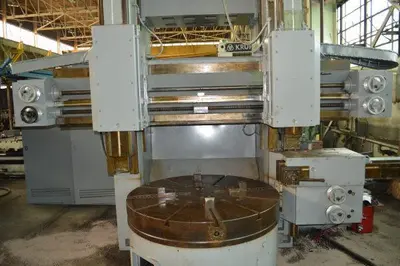

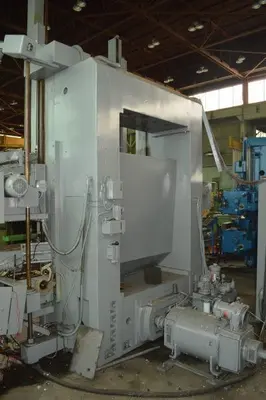

59" SUMMIT VERTICAL BORING MILL
NEW 1975
EQUIPPED WITH:
59" 4-Jaw Faceplate w/12 Radial Slots
(2) Ram-Heads (Swivelling-Type)
Pendant Control
SPECIFICATIONS:
Table Diameter
59"
Swing Maximum, w/o Side Head
70"
Swing Maximum, w/Side Head
65"
Height Under Cross-Rail, Maximum
47.25"
Cross-Rail Travel, Vertical
39"
Ram-Heads Travel, Vertical
33.5"
Ram-Heads Swivel, Degrees
35-DEGREES
Side-Head Travel, Vertical
45"
Side-Head Travel, Horizontal
26.5"
(18) Table Speeds, Range
4 to 165 RPM
Feeds, Range
.05 to .50 IPR
Cross-Rail Speed
14 IPM
Rapid Traverse Rate
98 IPM
Main Motor, Horsepower
40 HP
Cross-Rail Motor, Horsepower
5.5 HP
Side-Head Rapid Motor, Horsepower
3 HP
NOTE: This Machine Appears To Be In Very Good
Condition. However The Side Head Is Inoperable.
