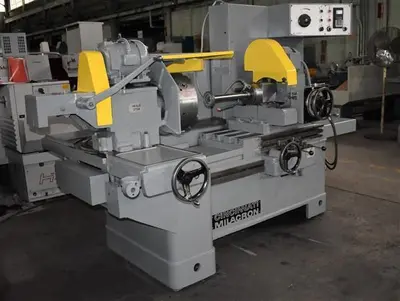

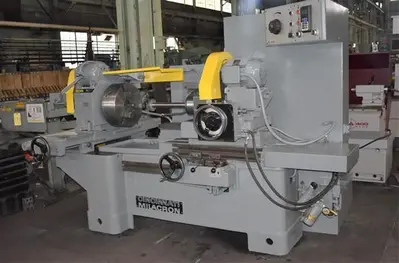

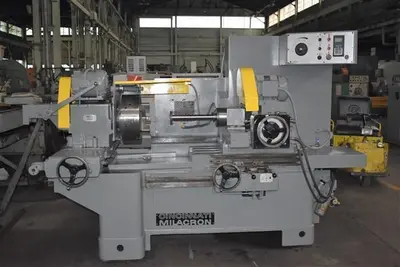

273A HEALD/CINCINNATI MILACRON UNIVERSAL GRINDER
New 1975
EQUIPPED WITH:
16" 3-Jaw Chuck w/Jaws
6,500 RPM Grinding Spindle w/Long Shaft
12" Extended Base
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Swing Over Table, Workhead Parallel
24.5"
Swing Inside Coolant Splash Guard
20"
Swing w/Workhead @ 90-Degrees
13"
Workhead Flange to Wheelslide, Range
0 to 41.06"
Bore Length Ground, Maximum
16"
Grinding Stroke, Minimum
.125"
Grinding Stroke, Maximum
16"
Table Longitudinal Travel
20"
Wheelhead Cross-Slide Travel
1.5"
Workhead-Slide Travel, Positioning
17.5"
Workhead Swivel Angle, Maximum
90-DEGREES
Workhead Spindle Speeds, Range
0 to 500 RPM
Grinding Table Speeds, Infinite
0 to 18 FPM
Power Rapid Table Traverse
18 FPM
Grinding Spindle Motor, Horsepower
5 HP/3500 RPM
Overall Dimensions, W x D
8'0" x 7'7"
Weight, Approximately
6200 LBS
