USED 1999 SPEEDFAM 64BSW466801-2412

Equipped With

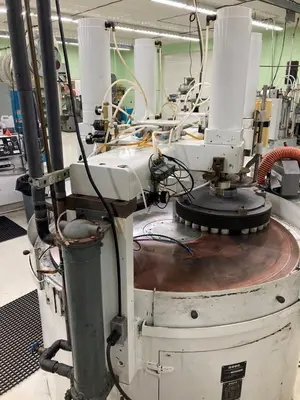

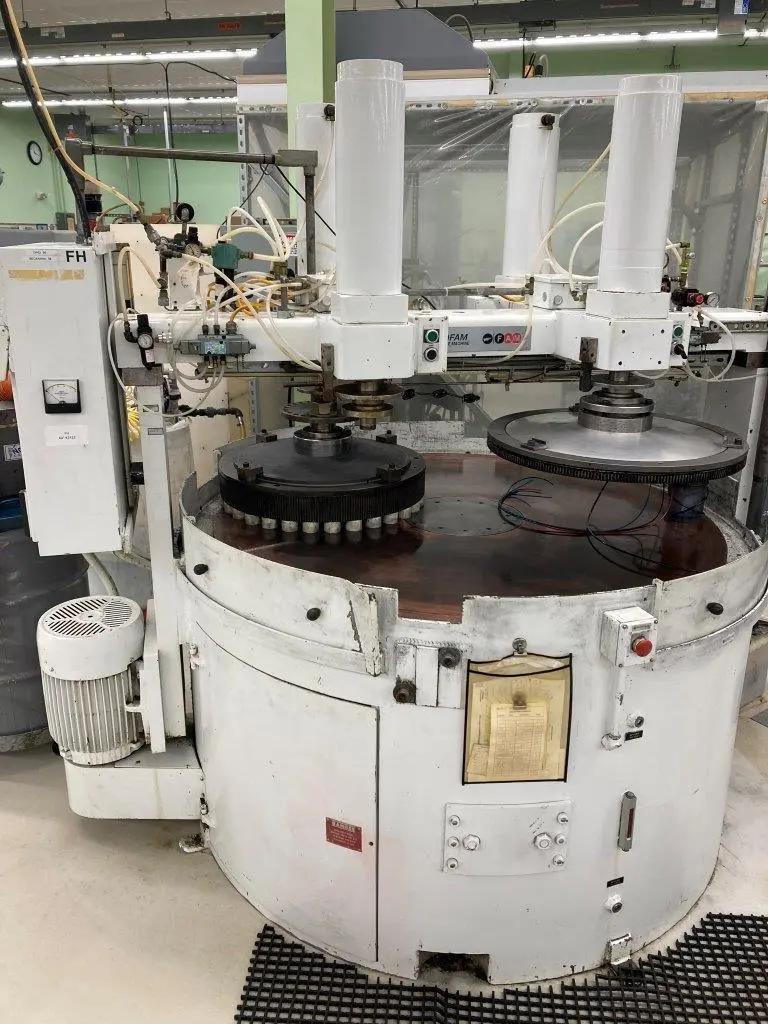

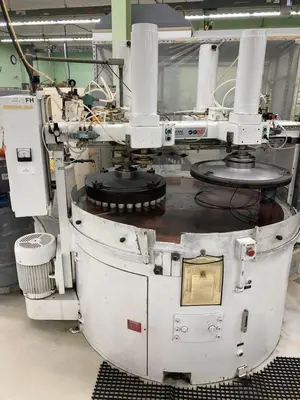

60" SPEEDFAM 64BSW LAPPING MACHINE
New 1999
Note: This machine is equipped with Copper Lapping Plate to perform lapping functions on Ceramics.
SPECIFICATIONS
Plate Diameter: 60"
Inside Ring Diameter: 22"
Total Ring Area: 1810 Sq. Inches
Plate Speed, Approximately: 45 RPM
Diameter Of Cylinders: 6"
Down Pressure Per Head: 1900 Lbs.
EQUIPPED WITH
15 HP Main Drive Motor
64" Diameter Segmented Lapping Plate
(4) Geared Conditioning Rings
(4) Air Pressure Hold Downs w/Plates
Push Button Control Station
Operators and Maintenance Manual
Approximate Overall Dimensions: 72" x 74" x 84"H
Approximate Weight: 12,000 Lbs.
