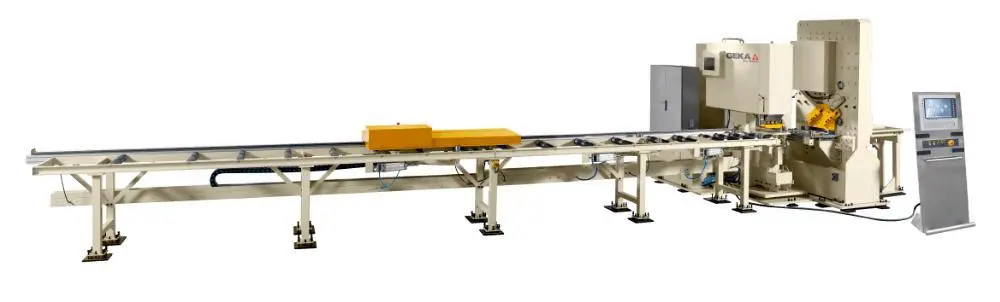

NEW GEKA ALFA PLUS

Equipped With
NEW GEKA ALFA PLUS AUTOMATIC CNC LINE FOR PUNCHING, DRILLING, MARKING AND SHEARING FLAT BARS
The Alfa Plus line consists of two models within Geka’s Alfa Series of CNC lines for processing flat bars: the Alfa 500-165T and the Alfa 500-220T. With punching forces of 185 US tons and 240 US tons, respectively, these are the two most powerful options in the Alfa Series. The two Alfa Plus models are CNC-controlled automated lines for steel flat bar and metal flat bar punching, shearing, marking, and drilling. These CNC solutions can perform those operations on flat bars up to 40″ long. The Alfa Plus CNC automated lines also feature a triple head punching unit for flat bars with diameters of up to 1 9/16″. Additional tools and accessories are also available from Geka, including an optional marking and drilling units, which means you can configure the CNC solutions that best meets your manufacturing needs with the help of our technical support service.
FEATURES
ALFA 500/165T
ALFA 500/220T
Flat Bar Size (Min.)
4 x 3/8″
4 x 3/8″
Flat Bar Size (Max.)
20 x 1 1/4″
20 x 1 1/4″
Optional Punches
Up to 3
Up to 3
Maximum Diameter
1 9/16″
1 9/16″
Punching Force
185 Tons
240 Tons
Marking
Rotary
Disc
Number of characters
40
40
Capacities based on a material resistance of 65,000 tensile.
The manufacturer reserves the right to make modifications without prior notice.
Peripherals Available for the Alfa Plus Models:
Automatic Material Loader.
Marking Unit.
Advanced Line Pro Software with Nesting and Importing.
Drilling Unit.
Main Features of the Alfa Plus CNC Lines
INPUT CONVEYOR UNIT
Rack & Pinion servo drive carriage.
Flat bars are pushed and clamped by the carriage.
PUNCHING UNIT
Can punch flat bars with diameters of up to 1 9/16″. Hydraulic hold-down. Servo motor and spindle-driven horizontal positioning along the Y-Axis.
SHEARING UNIT
Cuts flat bars. Hydraulic stops and clamping guides.
USER-INTERFACE
PC on Windows 10 platform. Network Connectivity. USB ports. Graphic interfaces. Remote Assistance via internet.
