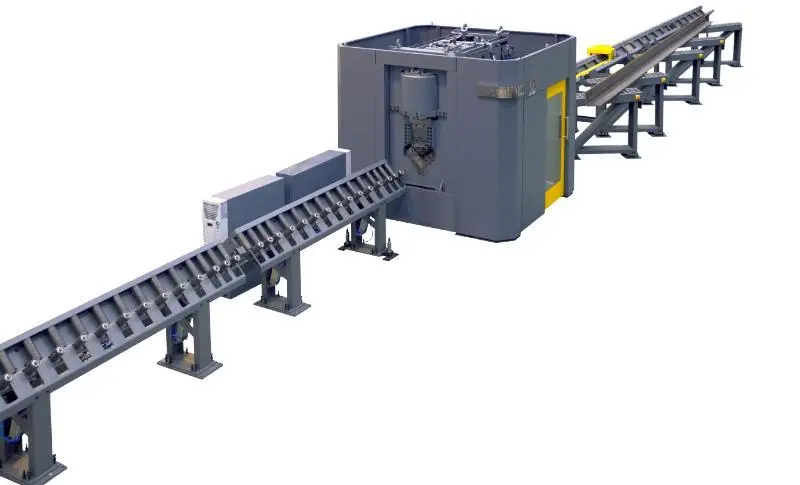

NEW GEKA GAMMA TRACTION 250

Equipped With
NEW GEKA GAMMA TRACTION 250 CNC LINE SOLUTION FOR SIZED ANGLES
The Gamma Traction 250 is one of the CNC automation lines in Geka’s Gamma Series. It features a traction system with a feeder trolley and performs punching, drilling, marking, and shearing of angles.
The Gamma Traction 250 can punch materials with thicknesses of up to 5/8″ and its four drilling tools per wing can drill materials up to 1 9/16″ thick. The cutting station in this CNC solution can shear profiles of dimensions as large as 10″ x 10″ x 1″. A cassette marking station is also included with the Gamma Traction 250.
Geka also has optional peripherals available for the Gamma Traction 250, including an output conveyor unit for the classification of material. With the assistance of our technical support service, you may configure the CNC solution to your particular requirements.
Features and specifications of the Gamma Traction 250 CNC Line
FEATURES
GAMMA TRACTION 250
Minimum angle
2″ x 2″ x 3/16″
Maximum angle
10″ x 10″ x 1″
Number of punches
6 (3/leg)
Maximum punch diameter
1-1/4″ in 5/8″
Marking Station
Cassette
Punching power
82 US Tons
Shearing power
560 US Tons
Drilling tools
8 (4 per wing) ISO 40
Drill Power
12 H.P. – 9 kW
Capacities based on a material resistance of 65,000 tensile.
The manufacturer reserves the right to make modifications without prior notice.
Main features of the Gamma Traction 250
AUTOMATED FEEDER
Material is clamped and pushed with a gripper. Rack and pinion system driven by a servo-motor.
PUNCHING UNIT
6 punches (3 per leg). CNC-adjustable gauge. Hydraulic hold-down.
SHEARING UNIT
Performs clean cuts without wasting any material. Blades may be easily and quickly changed.
MARKING UNIT
CNC-controlled positioning and marking selection. Adjustable pressure (supports future galvanizing and painting). Extremely fast and reliable.
DOUBLE DRILLING UNIT
8 tool (4 wing). Maximum diameter 1 9/16”. ISO 40 Tool Holder.
USER-INTERFACE
PC on Windows 10 platform. Network Connectivity. USB ports. Graphic interfaces. Remote Assistance via internet.
