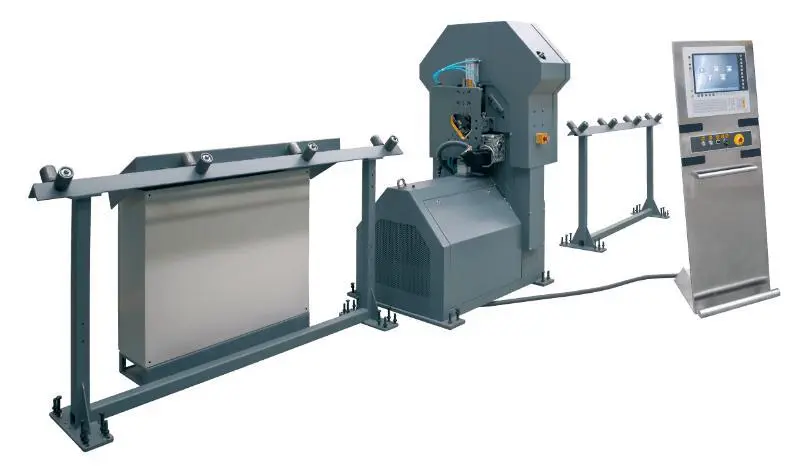

NEW GEKA GAMMA ROLLER 80/C2PL80

Equipped With
NEW GEKA GAMMA ROLLER 80/C2PL80 COMPLETELY AUTOMATED CNC SOLUTION FOR ANGLE PUNCHING AND SHEARING
The Gamma Roller 80 / C2PL is a CNC solution for automatic angle punching and angle shearing in Geka’s Gamma Series. This CNC line automatically processes angles, including cutting and punching on both sides, of materials from 1/8″ to 3/8″ in thickness. The angle is moved by means of a traction wheel with servomotor.
Several optional peripherals are also available from Geka for the Gamma Roller 80 / C2PL, including an automatic side loader and exit conveyors, which means you can configure the ironworker machine to suit your specific manufacturing needs with the help of our technical support service.
Features and specifications of the Gamma Roller 80 / C2PL Ironworker Machine
Features
Gamma Roller 80 / C2PL
Minimum L
1-1/2 x 1-1/2 x 1/8″
Maximum L
3 x 3 x 3/8″
Nº Punches
2 (1/wing)
Maximum Diameter
1″
Punching Force
38 US Tons
Shear station tonnage
73 US Tons
X Axis Speed
up to 1,481″/min
Capacities based on a material resistance of 65,000 tensile.
The manufacturer reserves the right to make modifications without prior notice.
Main Features of the Gamma Roller 80 / C2PL
INPUT CONVEYOR UNIT.
Servo motor-driven tracking roller. Independent encoder.
PUNCHING UNIT.
One punch per wing. Adjustable gauges. Hydraulic hold-down device.
SHEARING UNIT.
Performs clean cuts without wasting material. Blades are quickly and easily accessible.
USER-INTERFACE.
Touch Screen. Windows based PC control. Remote assistance over the internet. USB Port.
