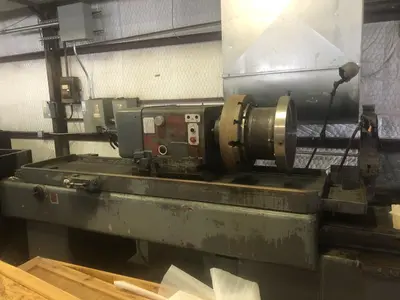

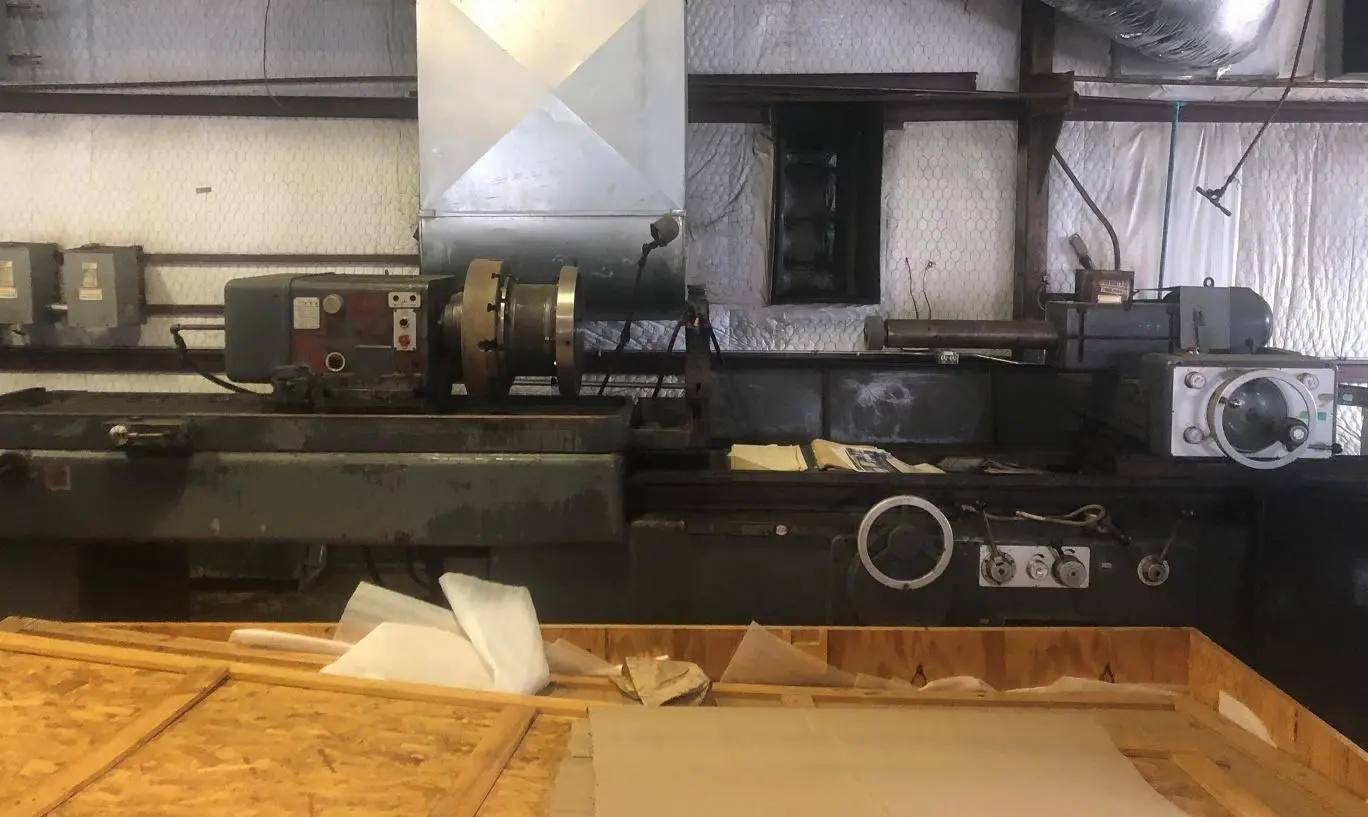

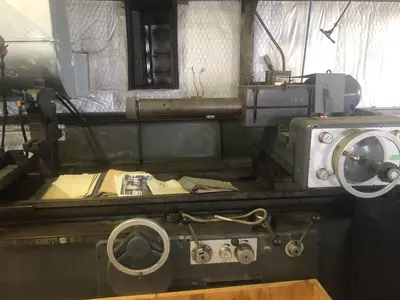

31" X 72" WOTAN MODEL 200/15-16 HEAVY DUTY INTERNAL GRINDER

Equipped With
31" X 72" WOTAN MODEL 200/15-16 HEAVY DUTY INTERNAL GRINDER
New 1970
Table Travel                             72"
  Swing Over Table                         31-3/8"
  Swing Over Swiveling Table               19-5/8"
  Center to Center, Work Spindle Flange
     To Grinding Spindle Holder            146" Max.
  Work Spindle Speeds (18)                 20 to 200 Rmp
  Table Feeds, Inf. Variable               0 to 25 Fpm
  Adjustable Angle of Work Headstock       15 Degree
  Adjustable Angle of Swiveling table      10 Degree
Conic Angle, Short Work Piece            50 Degree
Conic Angle, Long Work Piece             20 Degree
Adjustment of Headstock:
To The Front    2-3/4"
              To The Rear     7"
              Total            9-3/4"
Work Spindle Motor                       3 Hp
Grinding Spindle                         10 Hp, 3,000 Rpm
Floor Space Required                     20' x 9'
Weight, Aprrox.                           21,600 Lbs.


  Equipped With:


  (1) Steadyrest
  16" 4-Jaw Chuck
  16" Faceplate
  (6) Grinding Spindles
  Spindle Sleeves
  Numerous Grinding Rocks
