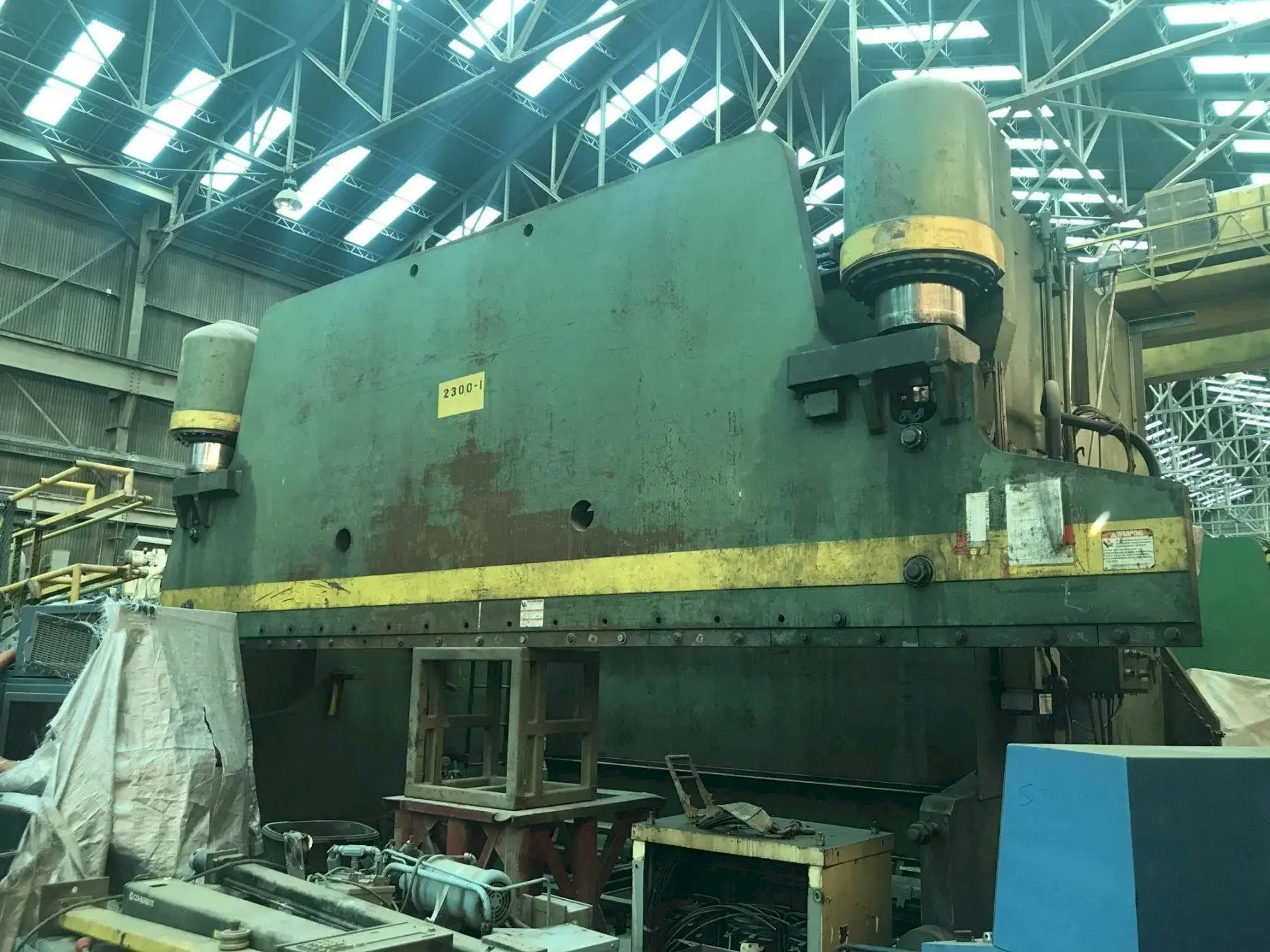

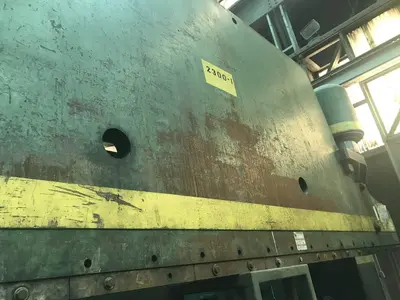

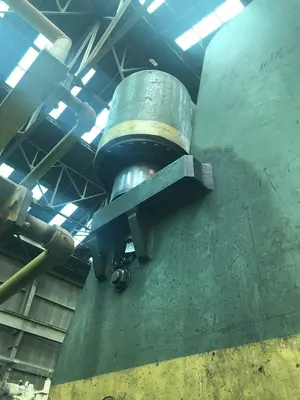

500 TON X 21' PACIFIC MODEL K500-21 HYDRAULIC BRAKE
Overview
Specifications
Equipped With
500 TON X 21' PACIFIC MODEL K500-21 HYDRAULIC BRAKE
NEW 1972
CAPACITY ................................. 500 TON
OVERALL LENGTH OF BED AND RAM ............ 21'
BED WIDTH ................................ 18"
DISTANCE BETWEEN HOUSINGS ................ 16'5"
STROKE OF RAM ............................ 12"
OPEN HEIGHTS ............................. 22"
CLOSED HEIGHT ............................ 10"
DEPTH OF THROAT .......................... 36"
RAM PRESS SPEED FAST ..................... 55 IPM
RAM PRESS SPEED SLOW ..................... 26 IPM
RAM SPEED RETURN ......................... 60 IPM

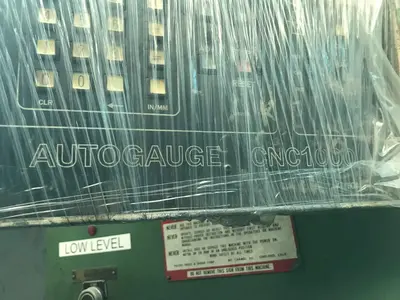

TONNAGE CONTROL & INDICATOR ............. AUTOGUAGE

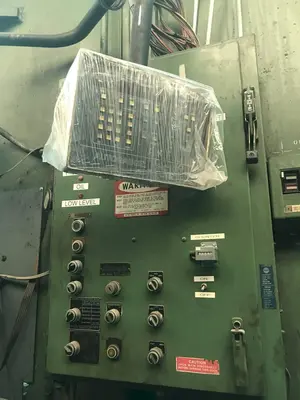

ELECTRIC FOOT TRIP ....................... YES
PALM BUTTON STAND ............... ........ YES
MOTOR .................................... 50 HP
