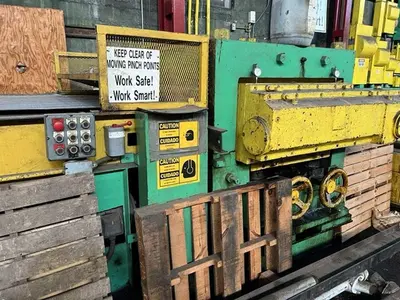

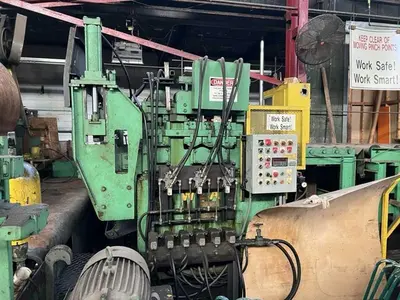

60" x 0.250" x 45,000 LB WEAN/MCKAY CUT TO LENGTH LINE

Equipped With
60" x 0.250" x 45,000 LB WEAN/MCKAY CUT TO LENGTH LINE

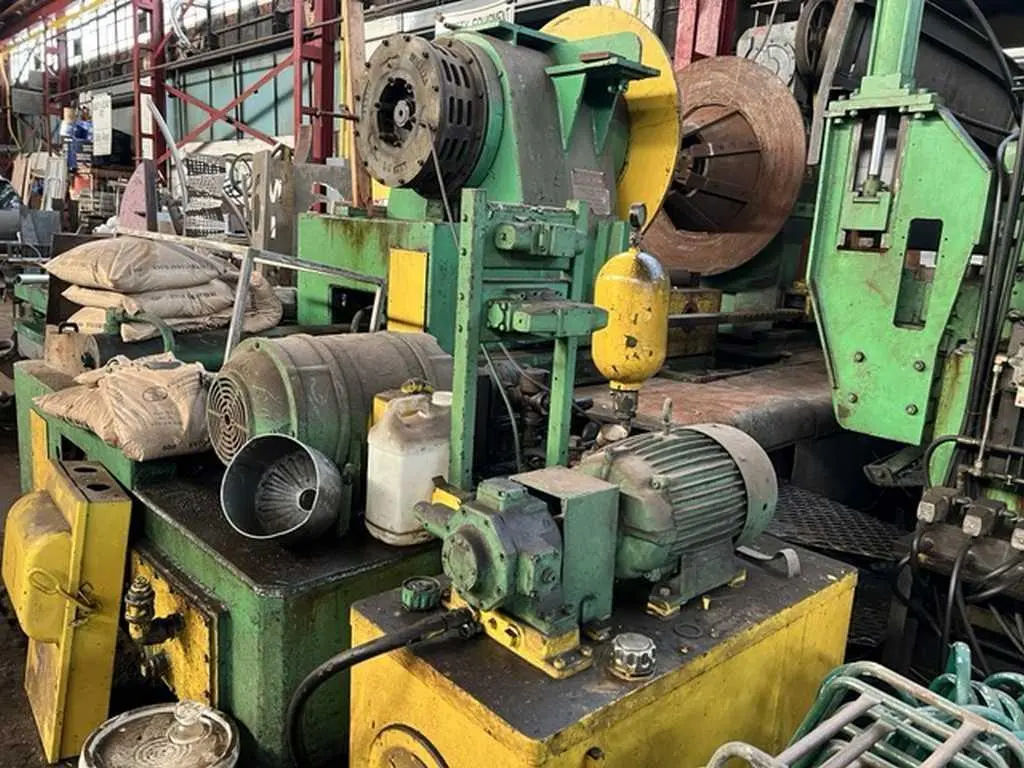

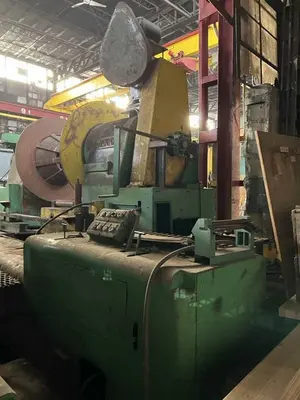

-Uncoiler:  Mckay
  Coil Weight:  45,000 lbs.
  Coil Width:  60"
  Coil ID:  TBD
  Coil OD:  60" (estimated)
  Double Cone Type
  Hydraulic Expansion
  Load Car
  Wichita Brake

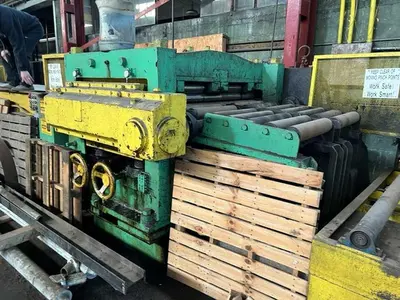

-Wean Flattener:
  Serial Number:  7510-33
  Gear Ratio:  18.33:1
  Material Width:  60"
  Material Capacity:  0.250" - to be verified
  (2) Entry Pinch Rolls
  (5) Leveling Rolls - 3 over 2 Rolls - Approx. 6" Dia.
  100 HP Reliance Electric Super RPM DC Drive Motor
  Brake Bar
  Peeler

-Roller Table:  60" Wide x 20'

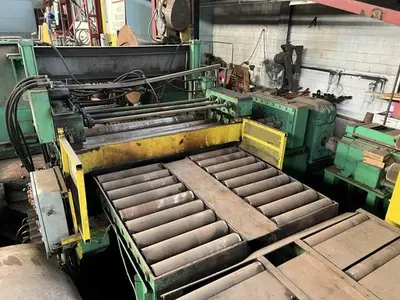

-Wean Shear:
  60" Wide x 0.250" Capacity
  40 HP Motor
  Upacting

-Belt Conveyor Table:
  60" Wide x 25'

-Mesta Leveler:
  Material Width:  60"
  Material Capacity:  0.500" - to be verified
  (15) Rolls
  Backed Up
  7 over 8 Rolls - Approx. 4" Diameter

-Roller Stacker Table:
  60" Wide x 25'
