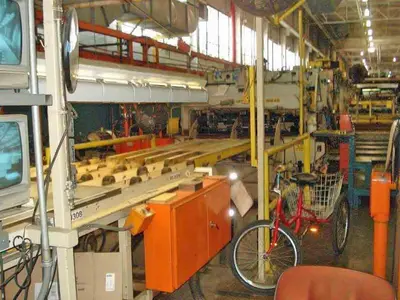

60" x 0.060" x 40,000 LB SESCO/VOSS CUT TO LENGTH LINE

Equipped With
60" x 0.060" x 40,000 LB SESCO/VOSS CUT TO LENGTH LINE
New 1983
60" Sesco Cut-to-Length Line w/Herr Voss 6 HI Leveler

Material:                 Stainless, Pre-Painted, Smooth & Embossed
Material Yield Strength:  40,000 PSI
Material Width:           12" - 60"
Material Thickness:       0.015" - 0.060"
Coil Weight:              40,000 lbs. Max.
Coil I.D.:                20" - 24"
Coil O.D.:                72" Max.
Sheet Length:             144" Max.
Line Direction:           Left to Right

Consisting of:

-Entry Coil Car/Upender:  Sesco
  Electro-Mechanical
  Hydraulic Operation

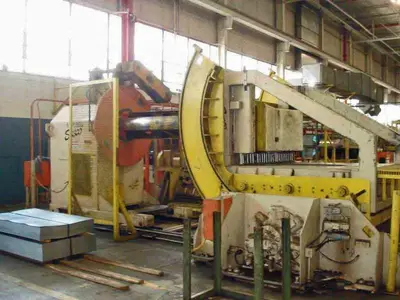

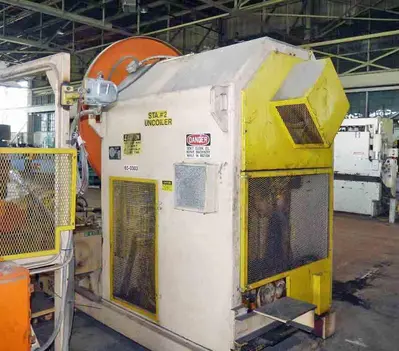

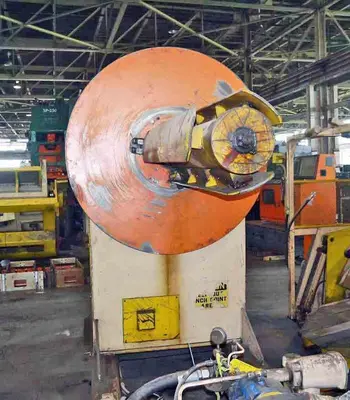

-Uncoiler:  Sesco (s/n: 20715)
  40,000 lb. Capacity
  Hydraulic Expansion
  3 Segment Mandrel
  Holddown Arm
  Threading Drive
  Brake
  Passline: Approx. 80" from Floor to center of Mandrel

-Peeler Table:  Sesco
  Hydraulic Cylinder Actuated

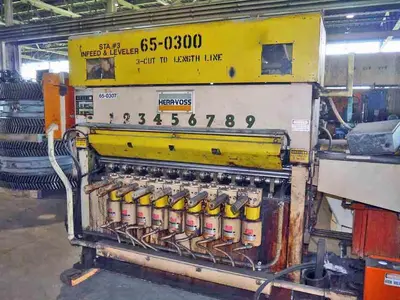

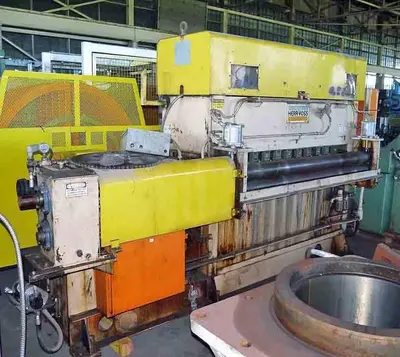

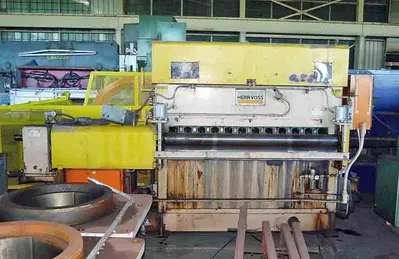

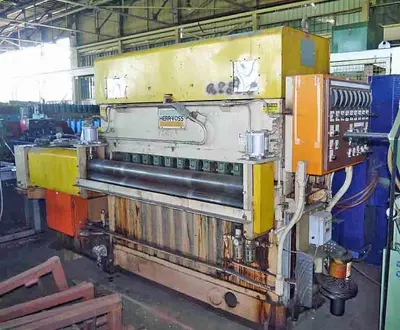

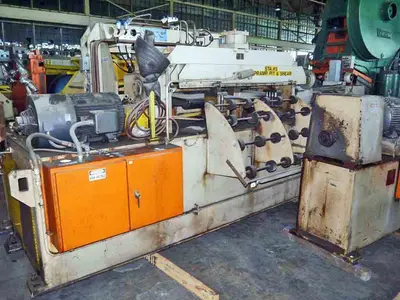

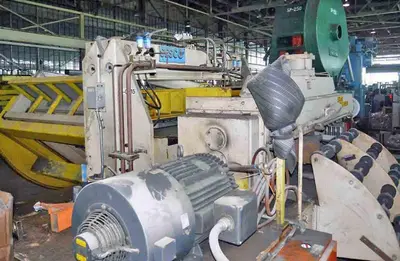

-Precision Leveler:  Herr Voss; S/N: 20570
  6 HI
  Model:  Keystone 72/1.156-19/11, 6 HI, LH
  Capacity:  0.015" - 0.060", 40,000 PSI Yield
  19 Work Rolls
  1.156" Dia. x 72" Face Width
  11 Flights of Backups
    9 Flights Motorized with Joystick Controls
  60 HP Baldor Vector Drive AC Motor
    1775 RPM, 230/460 V
  Philadelphia Reducer rated at 131 HP @ 1750 RPM, 2.28:1 Ratio
  Line Speed:  200 FPM Max.

-Pneumatic Pit Threading Table:  Sesco

-Feeder:  Sesco
  Model 49-406, S/N: 20721
  Entry & Exit Side Guides
  Manual Adjustment
  50 HP Baldor Vector Drive AC Motor
    1775 RPM, 230/460 V
  Feed Accuracy +/- 0.005"
  Trabon Automatic Lube System

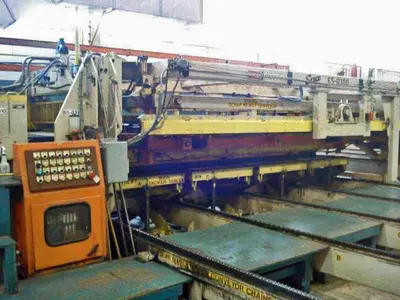

-Shear:  Sesco (New in 2004)
  Hydraulic Production Shear
  Model 54-171, S/N: 37917
  Bowtie Top Blade
  Straight 4 Edge Blade on bottom
  Hydraulic Cylinder Actuated
    (2) - 5" Bore x 2.5" Stroke Cylinders
  Passline Height: 55"

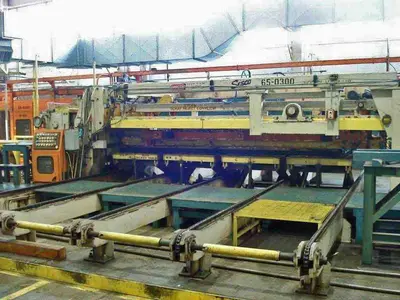

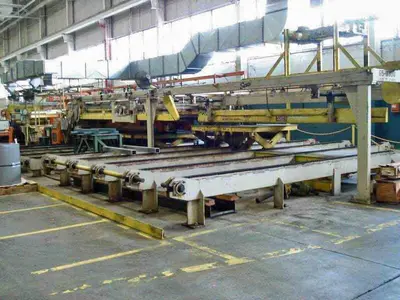

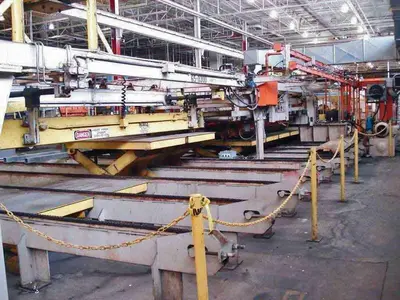

-Stacker:  Sesco
  Capacity:  12" - 144" Long Sheets
  Sheet Support Rollers
  Powered Lift Table
  Air Blower
  Side Discharge

-Pallet Insertion System:  Sesco
  Entry Chain Conveyor
  Exit Chain Conveyor

-Removed and in Storage
