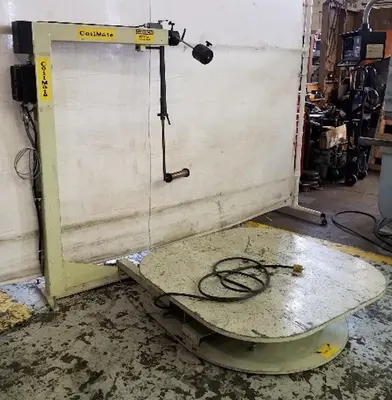

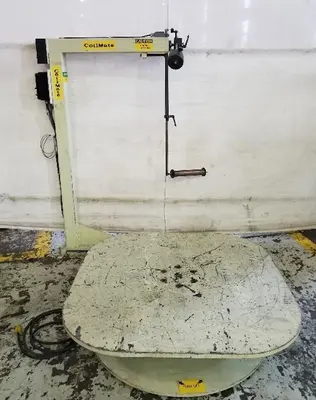

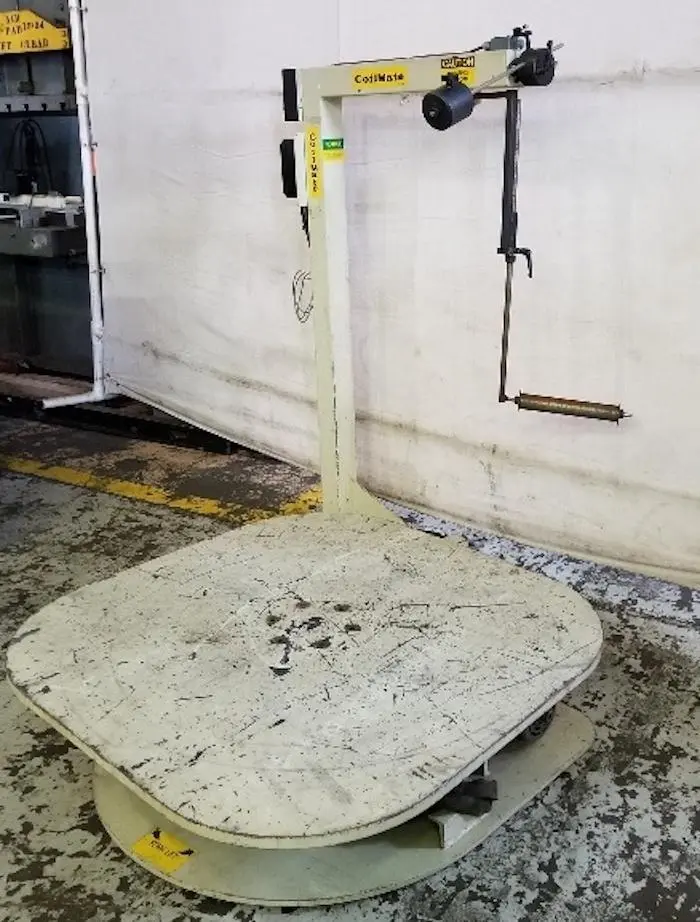

5,000 LB. COILMATE / DICKERMAN MODEL CM5048 PALLET TYPE UNCOILER

Equipped With
5,000 LB. COILMATE / DICKERMAN MODEL CM5048 PALLET TYPE UNCOILER
New 1999
SPECIFICATIONS:
Capacity 5,000 lbs.
Max OD 48"
Platform size 48"
Material rating up to 6" x .065"
Speed 0 - 23 rpm (variable)
Coil stack height up to 37"
Coil to platform height 13"
Motor 3/4 hp DC drive
Voltage 110V
Machine is equipped with rotating platform, dancer arm w/ potentiometer, variable speed by DC regenerative drive,forward/reverse & brake functions, loop control arm with counter weight, adjustable guide roll arm.
