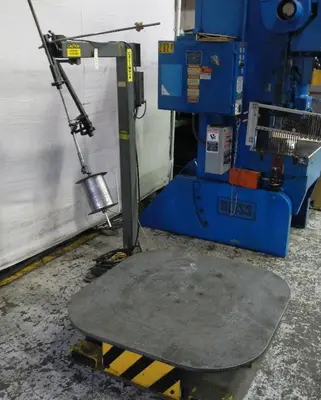

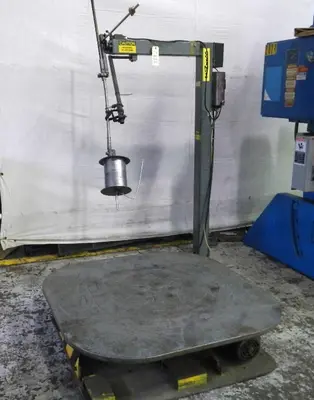

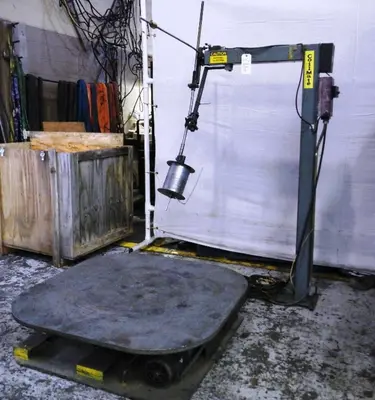

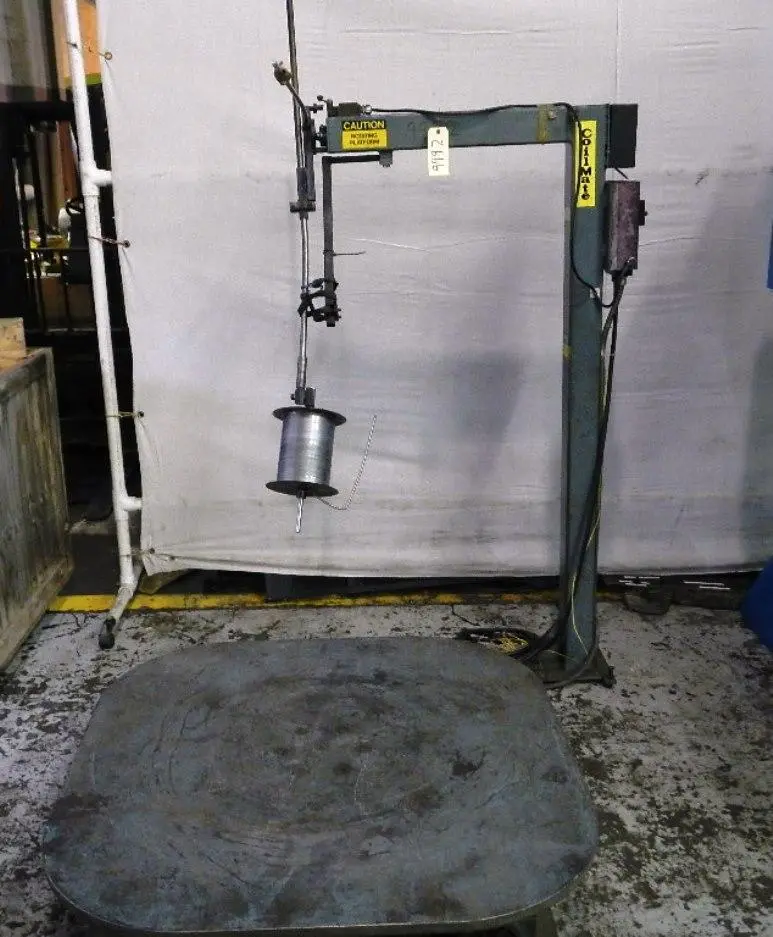

6000 LB. COILMATE MODEL CM6048 PALLET UNCOILER

Equipped With
6000 LB. COILMATE MODEL CM6048 PALLET UNCOILER
New 1995
SPECIFICATIONS:
Capacity 6,000 lbs.
Max OD 48"
Platform size 48" x 48"
Material rating .065" @ 6"
Speed 0 - 23 rpm (variable)
Coil stack height up to 37"
Floor to platform height 12 1/2"
Motor 3/4 hp DC drive
Voltage 110V
Dimensions 65" x 60" x 74" high
Weight 750 lbs

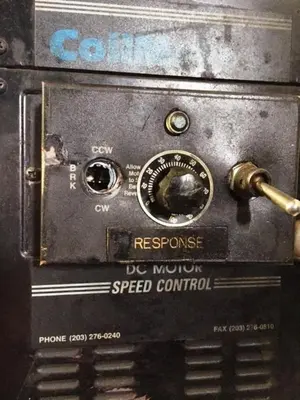

Machine is equipped with rotating platform, dancer arm w/ potentiometer, variable speed by DC regenerative drive, 8" wide guide roll, control system.
