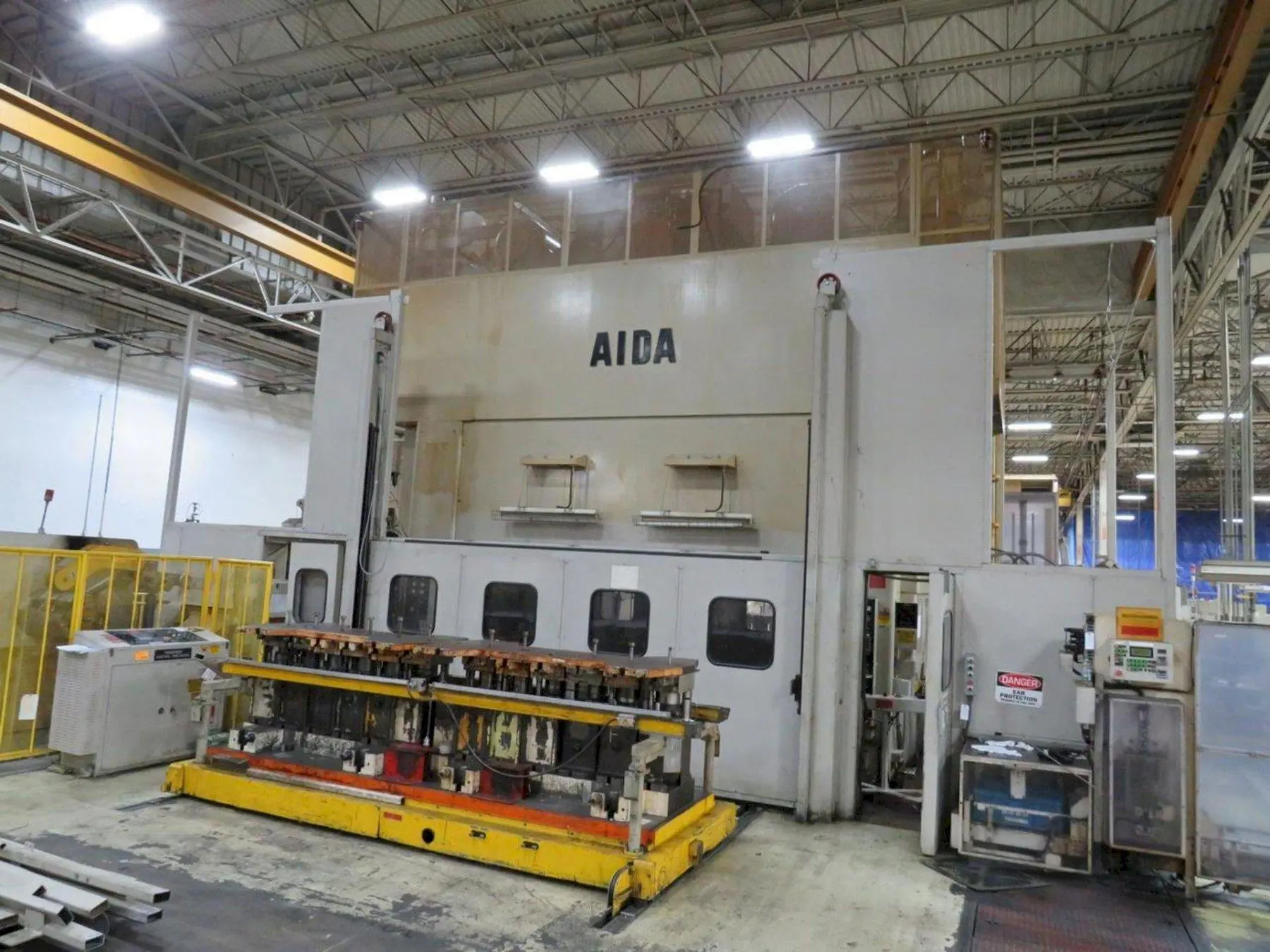

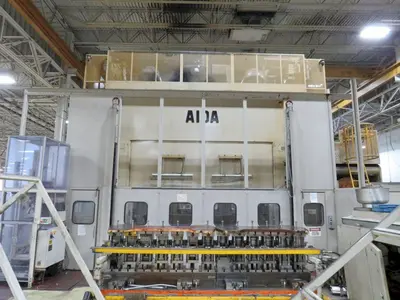

Aida 550 US Ton Model TMX-S2-500 Straight Side Mechanical Press

Equipped With
Aida 550 US Ton Model TMX-S2-500 Straight Side Mechanical Press
New 1995
SPECIFICATIONS:
Capacity....    ................................................. 500 Metric Tons
Bed Area........................................................ 153.54” x 47.24”
Slide Area………………………………….. 153.54” x 43.30”
Stroke............................................................. 20.07”
Adjustment.....................................................            3.93”
Shut Height.................................................... 35.82” SDAU
Strokes per Minute.........................................15-30
Feed Stroke of Transfer……………………. 11.81”
Clamp Stroke of Transfer………………….. 5.51”
Windows…………………………………… 60” wide approx.
EQUIPPED WITH:
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System

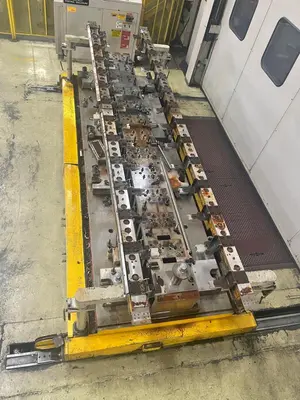

Dual Rolling Bolsters (F-B)
Transfer System
Die Cushions
8 Point Gibbing
Electrical Control Cabinet
Variable Speed Motor
Motors and Controls
Palm Buttons
Dual Ross Air Valve
Motorized Ram Adjustment
Main Motor Fwd./Reverse
