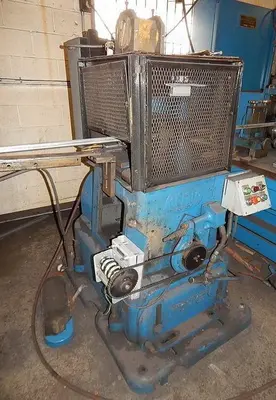

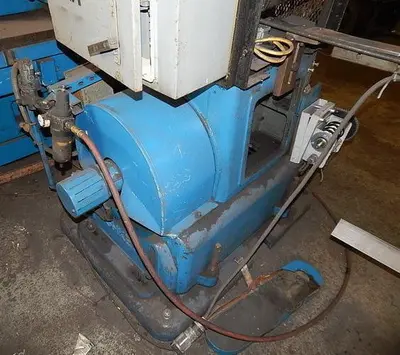

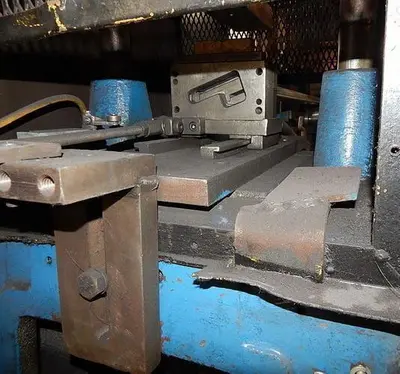

12 TON TISHKEN MODEL CO-4-2 CUT OFF PRESS

Equipped With
12 TON TISHKEN MODEL CO-4-2 CUT OFF PRESS
EQUIPPED WITH:

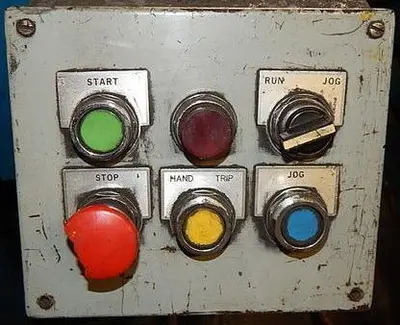

       Operating Controls (See Video)
       FLR

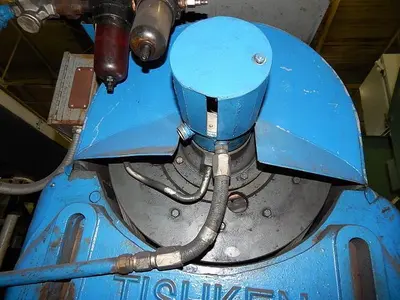

       Air Clutch
       Updated Rotary Cam Switch

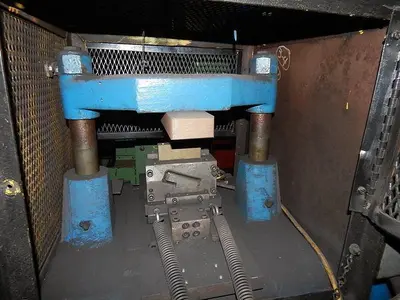

       Die Slide and Upper Strike Block
       3-Way Adjustable Base
       Run-Out With Trip Switch

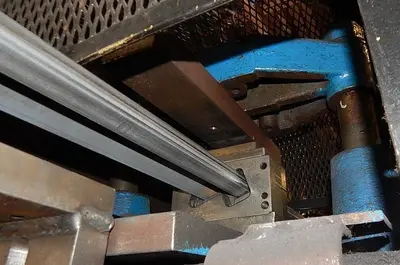

       Current Flying Die is Spring Return

 CONDITION: Good, Taken Directly From Service
 SPECIFICATIONS:

       Capacity:  12 Tons

       Post Diameter: (2) Post Type, 2: Diameter

       Stroke:  2-1/2"
       Shut Height, Adj. Pitman, Est.:  10" to 12"

       Bed Size:  13" FB Between Post x 14-1/2" FB

       Strokes Per Minute, Est.:  300

      Floor to Top of Bed:  37" to 45"
       Overall Base:  48" LR x 36" FB

       Current Part, Approx.:  3" x 1" x 1-1/4" x 16 Ga. LCS
