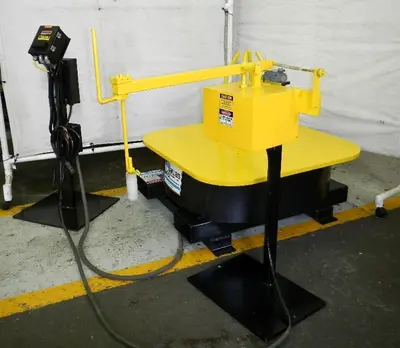

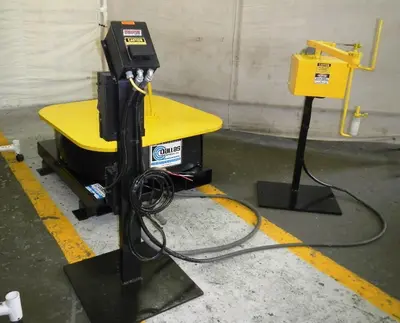

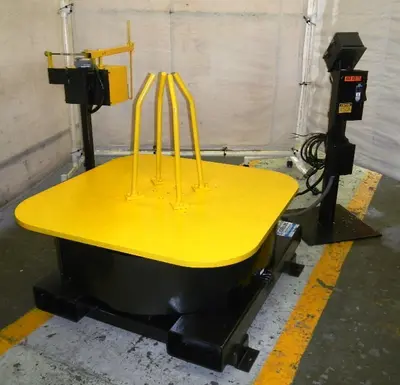

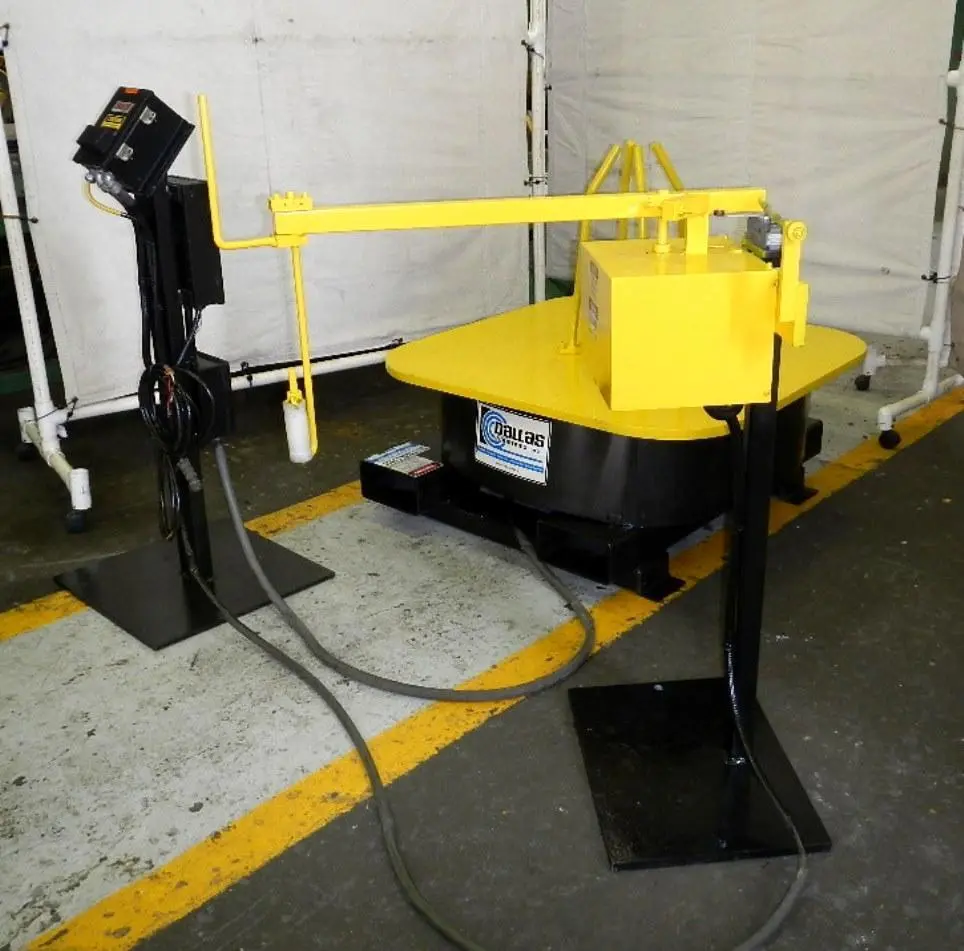

DALLAS MODEL DPU-4000#X48 PALLET TYPE UNCOILER

Equipped With
DALLAS MODEL DPU-4000#X48 PALLET TYPE UNCOILER
New 2000
SPECIFICATIONS:
Capacity 4,000 lbs.
Max OD 48"
Platform size 48"
Speed 2 - 12 rpm (variable)
Floor to platform height 21"
Motor 2 HP
Voltage 220 / 440 (single phase)
Dimensions 50" x 48" x 54" high
Weight 3,000 lbs.
* Note: A very heavy duty design with 1 1/8" thick steel table plate.

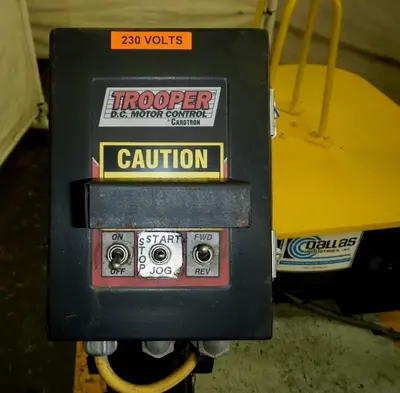

Machine is equipped with remote control stand w/ CW / CCW operation (forward / reverse), run / jog function, loop control on remote stand, bolt on ID guides, fork truck accommodations in the base, electrical schematics.
