Equipped With

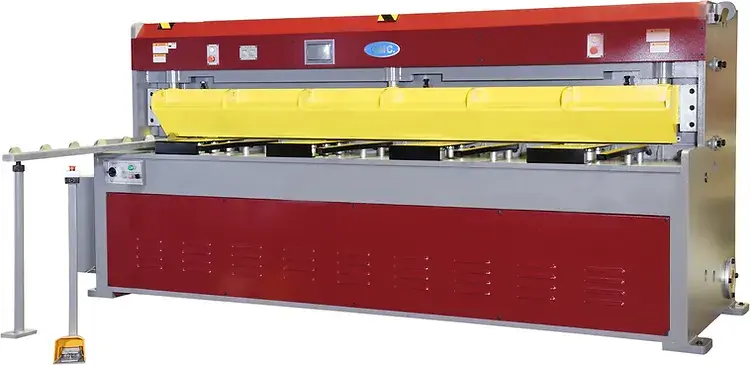

NEW 10' X 1/4" GMC MODEL HS-1025CNC HYDRAULIC SHEAR
ISO 9001 certified
comes with ESA CNC control for Back gauge, programmable
CNC programmable Blade Gap Adjustment
CNC programmable Rake change
CE standard & Siemens electric control system
Meet OSHA safety standard code
Shadow line for accurate straight cutting
Adjustable cutting length and stroke
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts
STANDARD EQUIPMENT
ESA CNC control for Back gauge, programmable touch screen
1 each 40” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA)
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
3 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box
OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine - $1,950.00
Cutting capacity:
Mild steel
Stainless steel
10’ x 1/4"
10’ x 3/16"
Blade length
10' 6"
Strokes per minute
10-12
Throat depth
20"
Worktable height
39"
Front support arm
24"
NC Back gauge
36” ESA CNC back gauge
Blade rake angle
0.5°- 2.5°
Oil tank cap.
50 Gal.
Main Motor
Powered B.G. Motor
15 HP , 220V/70A, 3 phase
2 HP , 220V, 3phase
Machine weight
19,850 LBS
Machine dimensions
157" x 106" x 75"
