NEW GMC FP-3760T

Equipped With

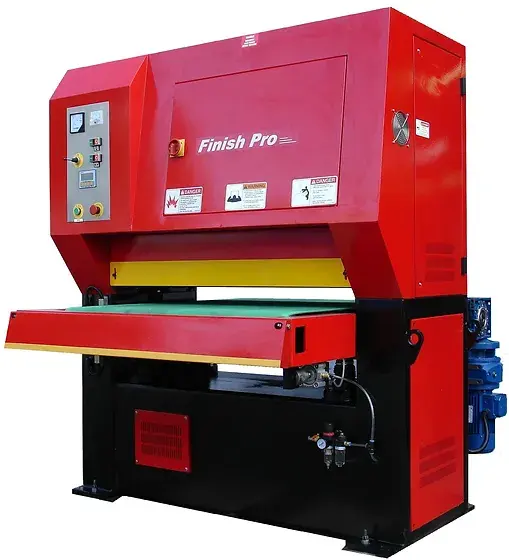

NEW 37" x 60" GMC MODEL FP-3760T WIDE BELT SANDING MACHINE
Made in Taiwan

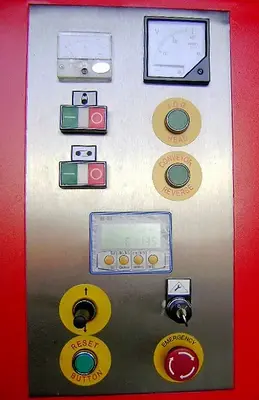

Computerized programmable material thickness control
Abrasive belt size: 37” x 60”
Motorized Table Lift with computer display
Variable Speed Conveyor
Conveyor Forward & Reverse
Belt Safety Overtravel Switches

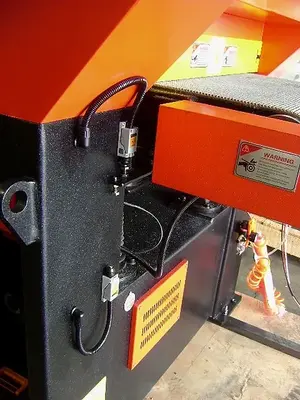

Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts

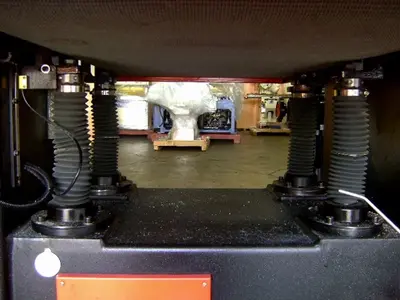

4-Jackscrew Table Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose

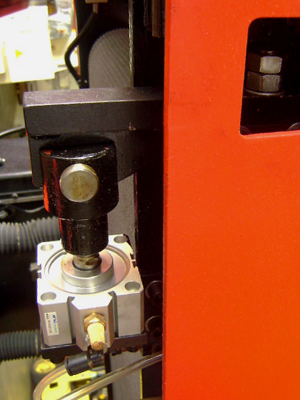

Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 82 dba
Operation manual, control tags, danger signs, and warning labels in English on machine
208/230V, 3-Phase , 440V/480V/3phase is optional
One year Industrial Warranty for parts
Prices are for 208-230 VOLTS
Total amps 75 @ 230/3/60
COMPRESSED AIR REQUIRED:  2 CFM @ 90 PSI
CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.
OPTIONAL EQUIPMENT
Wet Dust Collector #WDC-2100, 5 HP, 2,100CFM (it is demo wet collector, all stainless steel)
$7,900.00
Heavy Duty Ducting Package # HDDP-2560
$750.00
Service Engineer for Start-Up and On-site Training for # ST (plus travel expenses)
CALL US
Rotary Phase Converter with Smart Booster #PL-30
$5,550.00
Max. Part Width
37"
Abrasive Belt Size
37" x 60"
Contact Roller Size
8" Dia.
Passline Height
31" - 37"
Max. Thickness Capacity
Min. workpiece length
Max. workpiece weight
5-1/8"
Min 12”, need a fixture for smaller parts 275 LBS
Conveyor Drive Speeds
16 - 66 FPM
Infeed Conveyor Length
20"
Dust Colector Capacity
1,800 CFM
Main Motor
20 HP 3 Phase
Prewired: 230VAC
Optional: 460VAC

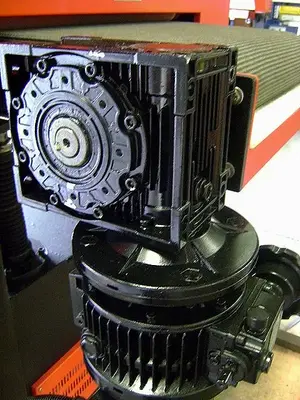

Conveyor Motor
2 HP 3 Phase
Prewired: 230VAC
Optional: 460VAC
Table Lifting Motor
1/4 HP 3 Phase
Prewired: 230VAC
Optional: 460VAC
Net Weight, Approx.
Shipping Weight:
2,650 LBS
2,950 LBS
Machine Dimensions: (LxWxH)
Shipping Dimensions:                                                           65" x 65" 72"
63" x 63" 70"
