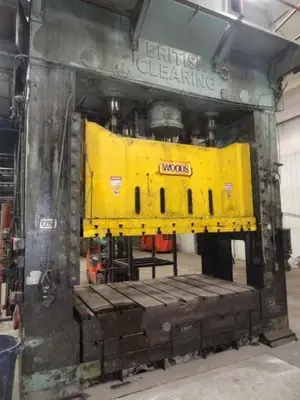

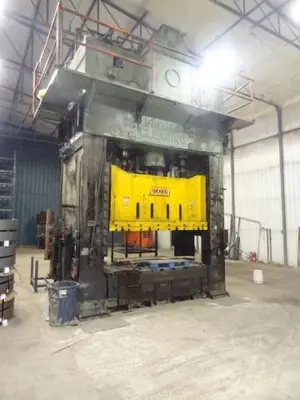

650 TON USI CLEARING S4-650-108-64 4-POINT STRAIGHT SIDE DOUBLE CRANK PRESS
Overview
Specifications
Equipped With
650 TON USI CLEARING S4-650-108-64 4-POINT STRAIGHT SIDE DOUBLE CRANK PRESS
Serial No. 31-3013-SCP3015
SPECIFICATIONS:
Bed Size................................108" x 64"
Stroke...................................18"
Adjustment...............................14"
Shut-Height..............................48"
Stroke Per Min...........................12.5"
Stroke of Bed Cushion....................9"
Windows..................................35" x 40"
Press is in-plant - Video Available of machine under-power
Weights
Crown....................................75,000 lbs
Bed......................................46,000 lbs
Bolster..................................37,000 lbs
Ram......................................36,000 lbs
Sides....................................24,000 lbs
Total Approximate Weight.................218,000 lbs
