NEW KENT USA GSL-32

Equipped With
NEW KENT USA MODEL GSL-32 GANG STYLE CNC LATHE
Product Highlights

Kent CNC GSL Series CNC Lathes feature a gang type structure with an inclined bed structure design. These features effectively save tool changing time. The GSL Series Lathes are equipped with a hydraulic six-station turret and have power-driven tools including edge milling, tapping, drilling, and are also capable of grooving processing. These CNC Lathes have extraordinary precision and help shop productivity.

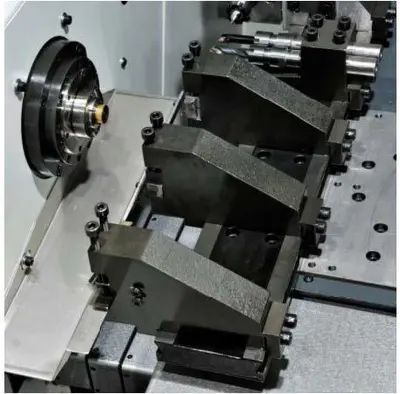

The Gang Type Tooling System aids with high-speed cutting and holds high accuracy during turning of any part. These CNC Lathes are equipped with linear guides for the X and Y axes to provide stable and accurate cutting. As a standard feature, these machines are equipped with a High Precision C-Axis Indexing function.

Turning Tool Holders × 3
Drill Holder (Single Hole) Ø .78 x 2
Drill Holder (Double Holes) Ø .78 x 1
Stop Bar × 1
Drilling Shaft × 3
OPTIONAL ACCESSORIES
Spindle Collets (EGURO 1020; FUJI 1125; FUJI1132; INDEX 42#)
Side Power Driven Tool (Servo Motor)
Vertical Power Driven Tool (Servo Motor)
Front Power Driven Tool (Servo Motor)
Auto Bar Feeder Machine
Parts Conveyor
Chip Conveyor With Cart
Oil Mist Collector
Auto Volt. Stabilizer
Auto Volt. Transformer & Stabilizer
SPECIFICATIONS
Max Turning Diameter                                         1.3"
3 Jaw Max Turning Length                                  3.93"
OD Tool                                                                .48" or .62"
ID Tool                                                                   C20 - ER16
Min Input Unit                                                       0.000039"
No of Tools                                                           11
Max Spindle Speed                                              6,000 RPM
Stroke
      X Axis                                                             13.38"
      Z Axis                                                              6"
Rapid Travers (X & Z)                                          .62 IPM
Spindle Motor                                                       6 / 7 HP
X&Y Axis Motor                                                    1 HP
Coolant Pump Motor                                            1 HP
Approx Dimensions                                              81" x 62" x 74"
Approx Weight                                                     3637 Lbs
