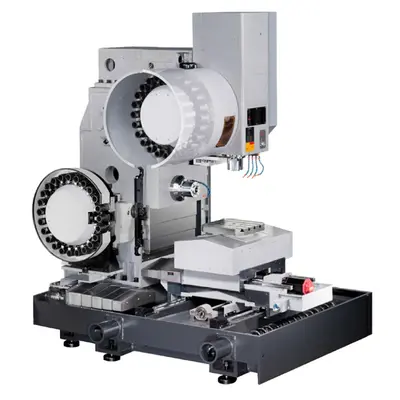

NEW KENT USA KHV-1100 CNC HORIZONTAL/VERTICAL MACHINING CENTER
Product Highlights
Kent CNC has introduced the New Kent CNC KHV-400 Combination Horizontal/Vertical Machining Center with the industry standard 0i-MD control by FANUC. Kent CNC sets a new industry standard with their latest combination dual spindle machining center, model KHV-400. By combining a horizontal machining center with a vertical machining center, this cutting-edge versatile machining center allows for faster setups and parts loading and unloading, improved accuracy, floor space maximization, and capital investment reduction.
Two Spindles are Better than One
It includes a powerful 10 HP (Horizontal)/15 HP (Vertical), 10,000 RPM (Opt. 12,000) spindle with Direct Drive Spindle Motor as standard. Both the horizontal and vertical travels are 19.7” X-axis by 19.7” Y-axis by 17.8” Z-axis with fast two-set 24-tool ATC. In addition, the rapid traverse for each axis is 36m/min that is upgradeable to up to 48m/min. The rotary table is equipped with an optical scale.
This Meehanite certified machine allows for five-sided machining in one setup for fast production and accuracy all in a compact floor space of 82” x 114”.
SPECIFICATIONS
Table Size 24.8" x 24.8"
Travels
X Axis 43.3"
Y Axis - Vertical 26.4"
Y Axis - Horizontal 26.4"
Z Axis - Vertical 26.4"
Z Axis - Horizontal 26.4"
Vertical Spindle Center To Column 31.9"
Vertical Spindle Nose To Table 3.3" - 29.3"
Horiz. Spindle Center To Table Top 4.7" - 29.1"
Horiz Spindle Nose To Table Center 7.5" - 31.3"
Table Load Capacity 1323 Lbs
Spindle Taper BT40 / CAT40/ ISO40
Spindle Speeds (Vert/Horiz) 10,000 RPM (Opt 12,000 RPM)
Main Motor 15/20 HP Direct Drive
ATC Magazine For Arm Type 20/24 (Opt 40/40)
Rapid Traverse 24 M/Min
Cutting Feed Rate 1-15,000 MM/Min
Machine Weight 32,407 Lbs
Approx. Dimensions 177" x 138" x 140"
