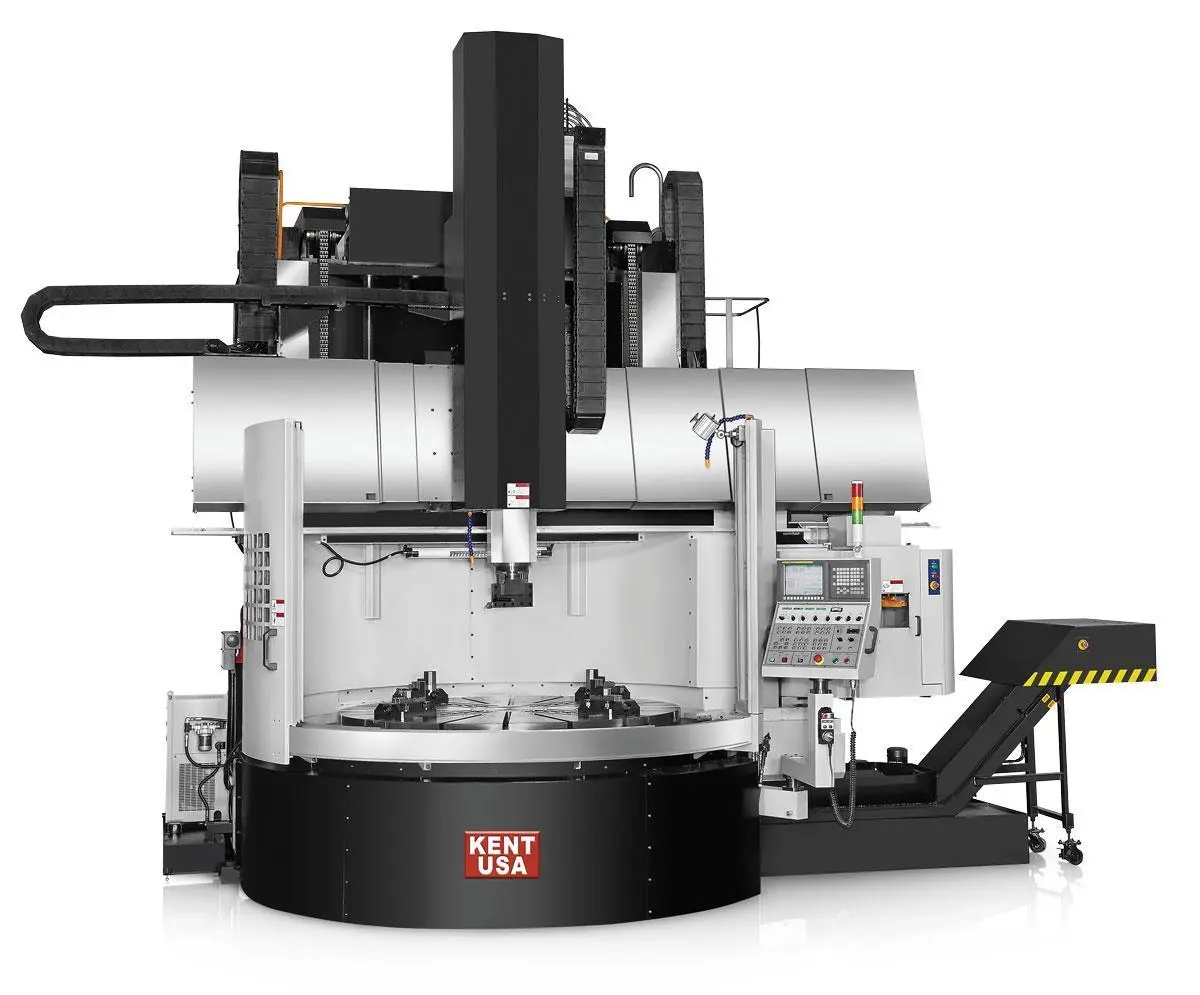

NEW KENT USA KVT-200M

Equipped With
NEW KENT USA KVT-200/M LARGE CNC VERTICAL TURNING CENTER
Kent USA offers a full range of CNC Vertical Turning Lathes, which combine proven machine design with advanced technology in control and manufacturing. The rigid machine structure enables higher machining efficiency with better finish and longer tool life, resulting in greater productivity and profitability.
Unique Hydraulic Static Bearing Design – The floating hydraulic bearing is designed with a heavy-duty roller bearing. This sits in a rigid one-piece base casting, providing the ideal combination of increased table load and precision machining.
Patented Octagon RAM Design – The unique structure of all Kent USA models provides excellent straightness with improved control of thermal expansion. This special Octagon RAM provides superior damping characteristics and improved rigidity when compared with the traditional square RAM design.
Massive Hydraulic Clamps Lock Crossrail – Each position is locked by 4 strong independent hydraulic cylinders in conjunction with large taper lock pins. This design provides both flexible and rigid crossrails that provide the machine’s versatile capacity, superior positioning and repeatability control.
Saddle Structure – The 15˚ slant bed design is used on both KVT-160 and KVT-200 models. This reduces overhang problems and provides increased machine rigidity.
Multi-Ribbed Column – The one-piece column made from Meehanite cast iron and a wide span ribbed box structure provides strong stability and rigidity. It dramatically decreases vibration, thermal expansion and deformation caused by cutting stress. The oversized box slideways are heat-treated to Rockwell 55˚ and stress relieved.
Work Table – High rigidity work table with 4 jaw manual chuck.
Gear Box – The high torque, 2-speed gearbox matches to a Fanuc spindle motor with a maximum torque of 17,163 ft-lbs, providing a cutting power to suit all types of material.
Standard Accessories
Independent 4 Jaw Manual Chuck
12 Tools of ATC for KVT series
18 Tools of ATC for KVT(M) series
Machine Cover (Semi-Opened)
Oil / Water Separator
Auto Lubrication System
Tool Holder BT-50 (O.D. + I.D.) x 1 pcs
Chip Conveyor
Heat Exchanger for Electrical Cabinet
Work Light and Signal Tower Light
High Pressure Pump (3 Bar)
Tools and Tool Box
Hydraulic Unit
Table Lubricant Oil Cooling Unit
Anchor Bolt and Pad
FANUC 0i-T Controller
Optional Accessories
Air Conditioner for Electrical Cabinet
Transformer for Power Source
Additional Tool Holders
Coolant Through Spindle
X / Z-axis Linear Scale
Tool Probe
Parts Probe
3 Jaw Power Chuck
High Pressure Pump (6 Bar)
High Pressure Pump (10 Bar)
CF-axis
CAT Tool Magazine
SPECIFICATIONS
Table Diameter                                                              78.7"
Max. Swing                                                                    98.4"
Max Turning Diameter                                                   98.4"
Ram To Table Distance                                                  41.9" - 73.4"
Max Turning Height                                                        71"
Max Workpiece Weight                                                  33,069 Lbs
Ram Size                                                                        9.5" x 10.6"
Min ID For Ram Pass                                                     12.2"
Table Speed                                                                    1-200 RPM
Max Torque Of Table                                                       41,155 Ft/Lb
Live Spindle Speed                                                         50-2250 RPM
Travels
       X Axis                                                                       -51" - 59.4"
       Z Axis                                                                        49.2"
       Crossrail                                                                    31.5"
Crossrail Step                                                                   7.87" x 5
Rapid Traverse
       X Axis                                                                         393.7 IPM
       Z Axis                                                                         393.7 IPM
ATC Capacity                                                                    12 / M:18
Spindle Motor                                                                    50/60 HP
X/Z Servo Motor                                                                8 HP
CF Axis Servo Motor                                                         M: 10 / 15HP
Approx. Dimensions                                                          307" x 201" x 226"
Approx. Weight                                                                 92,594 Lbs
