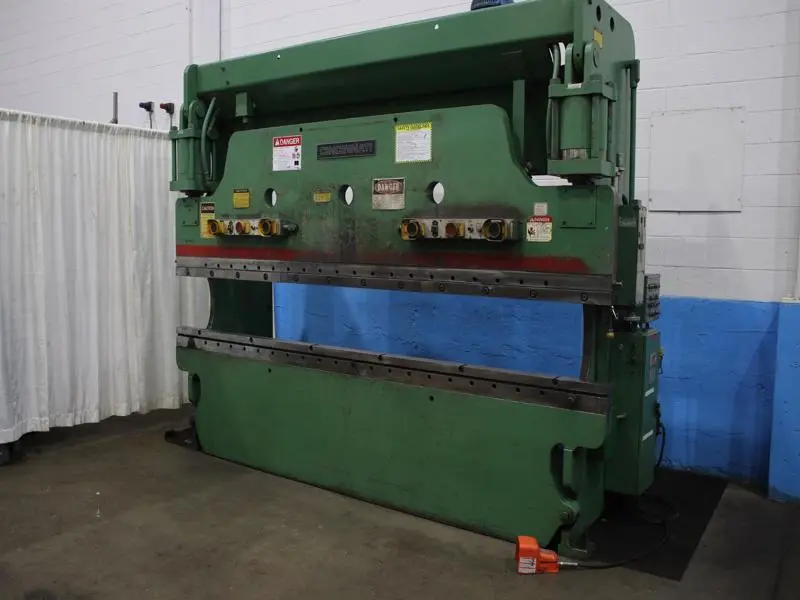

USED 1977 CINCINNATI CB10

Equipped With
135 X 12' CINCINNATI CB10 HYDRAULIC PRESS BRAKE
New 1977
SPECIFICATIONS

SERIAL .............................. 41740
MODEL ............................... 135CB X 10'
OVERALL LENGTH OF BED ............... 144"
DISTANCE BETWEEN HOUSINGS ........... 125
STROKE .............................. 8"
MAXIMUM DAYLIGHT .................... 15"
MINIMUM DAYLIGHT .................... 7"
THROAT .............................. 7"
RAM SPEED RAPID ADVANCE ............. 136 IPM
RAM SPEED MEDIUM ADVANCE ............ 65 IPM
RAM SPEED LOW ADVANCE (PRESSING) .... 16 IPM
RAM SPEED RETURN .................... 122 IPM
RAM MILLED AND DRILLED FOR ANGELS ... YES
BED MILLED AND DRILLED FOR ANGLES ... YES
FLOOR STANDING ...................... YES
DUAL PALM BUTTONS ................... YES
FOOT PEDAL .......................... YES
MAIN MOTOR .......................... 25 HORSEPOWER
​
