Equipped With

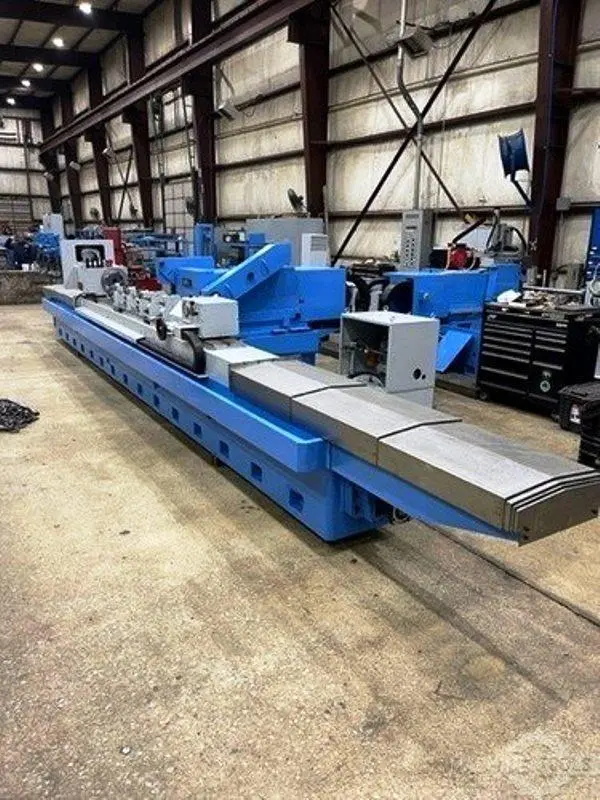

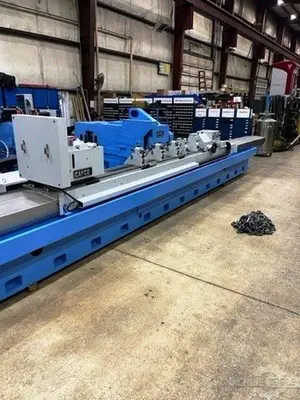

14” x 120” CAPCO ROLL GRINDER
Remanufactured
SPECIFICATIONS:
Swing over table: 14”
Maximum swing over table: 15”
Minimum diameter machine will grind: 0
Distance between centers: 127”
Maximum weight between centers: 1322 lbs.
WHEELHEAD:
Maximum grinding wheel: 18”
Grinding wheel spindle speeds: 0-1800 rpm
Grinding wheel motor Fanuc AC Vector
Grinding Wheel Drive Fanuc AC Vector
HEADSTOCK:
Number of spindle speeds: Infinite
Range of spindle speeds: 0 – 300 rpm
Taper hole in spindle:
Workhead motor Fanuc AC Vector
Workhead Drive Fanuc AC Vector
INFEED:
Wheelhead infeed motor Fanuc AC Digital Servo
Table:
Type 1 Piece
Traverse motor Fanuc AC Digital Servo
Traverse speeds 0 - 200 IPM
Ballscrew
TAILSTOCK:
Taper hole spindle
Tailstock mount dresser
CROSS TRAVERSE & SIZING
Wheelhead movement per rev. of handwheel 1/16”
Min. Infeed increment on Diameter .0001”
Max. Auto. Pickfeed at Table Reversal .0012”
Min. Auto. Pickfeed at Table Reversal .0002”
Power Cross Traverse Rate 16 IPM
Control Specifications: AGQ3000 Touch Screen Conversational Control
20” Fanuc PLC Control Screen
Least Input Increment of 0.00010”
Manual Pulse Generator
Programmable feeds and speed
Crowning
Continuous infeed
Taper compensation
End infeed, either end or both ends
End Dwell (Tarry) Programmable
RPM Readout of Wheel and Work Speeds
IPM display of table traverse.
Spindle percentage load meter
EQUIPMENT:
Heavy Duty Headstock with Equalizer Drive
3 Steady Rest
Footstock with Diamond Holder
Wheel Mount
Wheel Lifter
Telescoping Table Way Covers
Splash Guards
Tachometers for work and wheel RPM
Spindle Load Meter
Mirror Attachment
POWER REQUIREMENTS:
Base machine as described herein 480/3/60, approx. 10amp.
