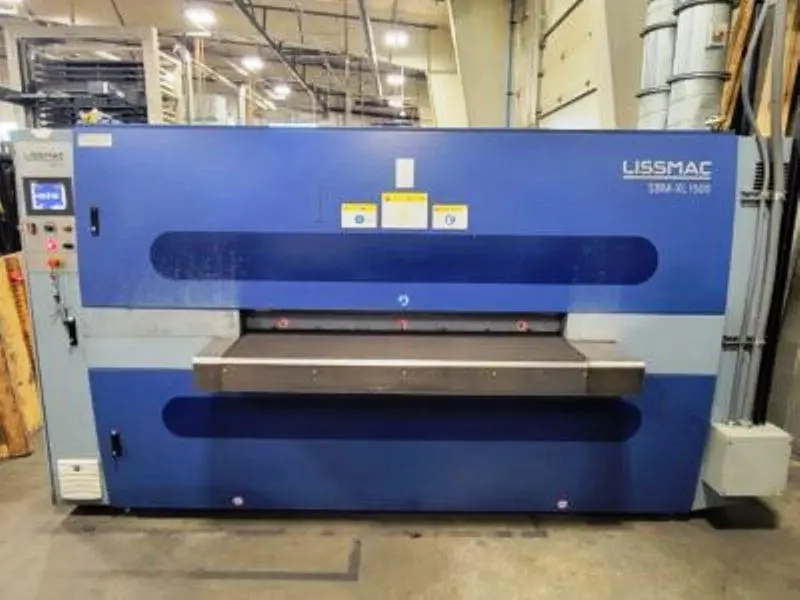

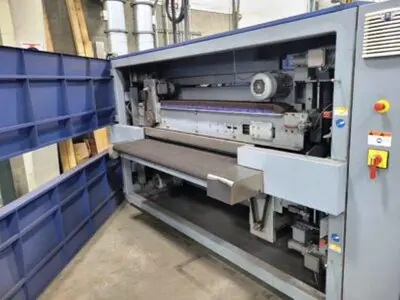

LISSMAC SBM-XL 1500 G2S2 EDGE ROUNDING AND DEBURRING MACHINE

Equipped With
LISSMAC SBM-XL 1500 G2S2 EDGE ROUNDING AND DEBURRING MACHINE
New 2014
deburring and edge rounding of plate material on both sides. The main focus is on deburring and processing plasma and flame-cut parts after oxy-fuel and plasma cutting. The XL series is equipped with four units on the top and bottom. The edge rounding on both sides and the deburring of steel and stainless steel parts results in highly efficent processes. By machining both sides simultaneously, it saves turning over heavy parts.

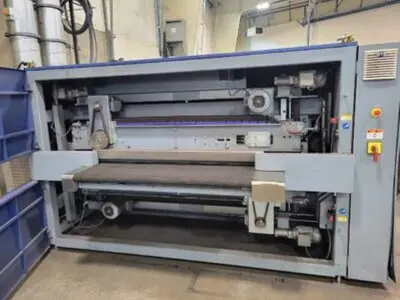

The SBM-XL G2S2 has high-performance grinding units that achieves an accurate finish and has a high load capacity for heavy components. Additional flexibility and energy efficiency are achieved through processing units that can be switched on and off separately.

Specifications:
2"-60" WORKING WIDTH
0"-4.72" WORKABLE MATERIAL THICKNESS
660 LB LOAD
0-13 FT/MIN INFINITELY VARIABLE FEED SPEED
ELECTRIC ADJUSTMENT OF MATERIAL THICKNESS
ELECTRIC ADJUSTMENT OF TOOLS
IP 42 INSULATION CLASS
Dimensions:
142" X 83" X 80"
Weight:
9,260

Further Information

Deburring and edge rounding of parts up to 120 mm material thickness
Processing both sides of the parts simultaneously eliminates the need of turning heavy parts and processing them for a second time
Simultaneous deburring and edge rounding on interior and exterior contours
Dry operation
Simple, intuitive operation

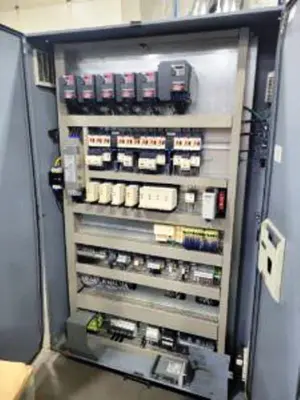

The processing units can be individually adjusted or turned on and off electrically.
Maximum productivity while maintaining machining quality
The cross-machining principle guarantees optimum tool utilization over the entire working width.

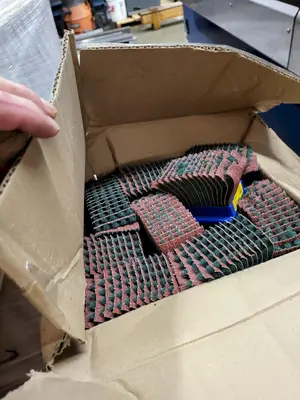

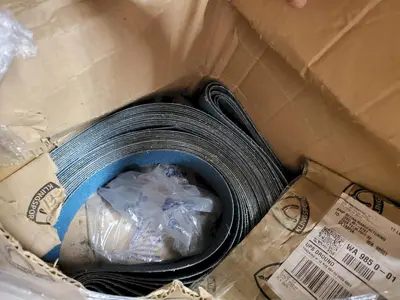

Faster and simpler tool change within just a few minutes
Modular and compact in modern machine design - smaller footprint
Improved work environment - Reduction of dust, dirt and noise
Optionally available: Conveyor Technology; Handling Systems, Automation; Custom Solutions
For repeated customer requirements, processing parameters can be called up quickly and easily through predefined programs.
Up to 60 % work time savings compared to one-side processing grinding machines
