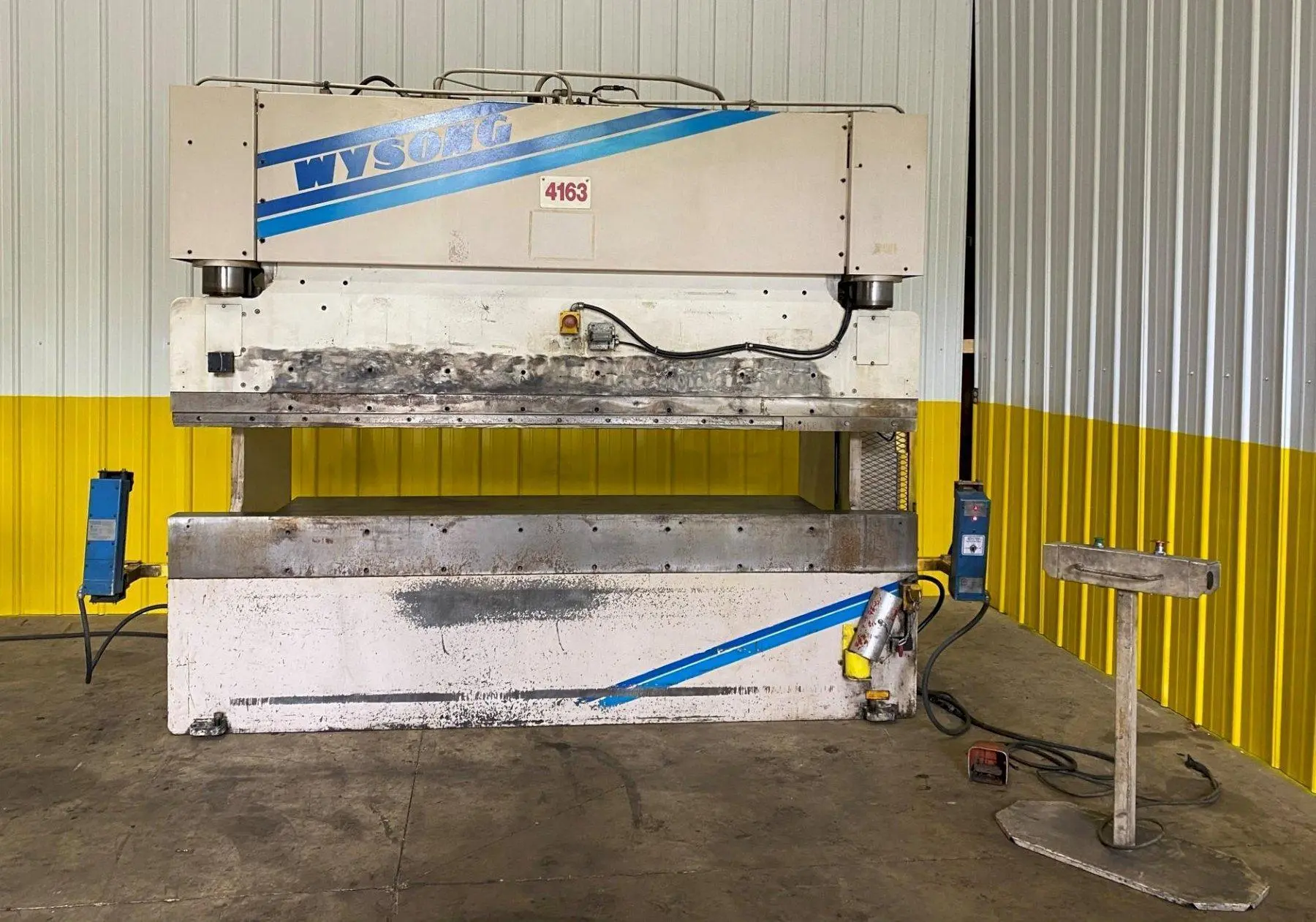

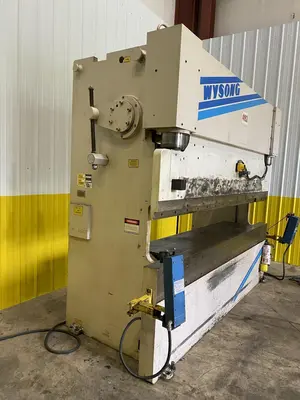

140 TON X 10' WYSONG MODEL #THS140-120 "HIGH SPEED" HYDRAULIC PRESS BRAKE
Overview
Specifications
Equipped With
140 TON X 10' WYSONG MODEL #THS140-120 "HIGH SPEED" HYDRAULIC PRESS BRAKE
New 1997

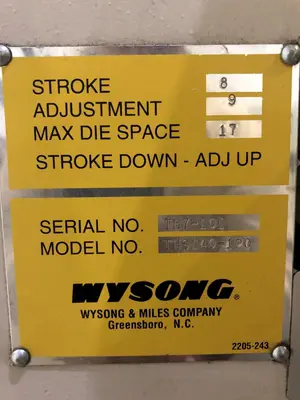

SPECIFICATIONS:
CAPACITY ....................... 140 TONS
OVERALL LENGTH OF BED & RAM .... 120"
DISTANCE BETWEEN HOUSING ....... 96"
STROKE ......................... 8"
ADJUSTMENT ..................... 9"
MAX DIE SPACE .................. 17"
"HIGH SPEED" BRAKE ............. YES
RAM SPEED APPROACH ............. 300 IPM
RAM SPEED PRESS ................ 20 IPM
RAM SPEED RETURN ............... 225 IPM

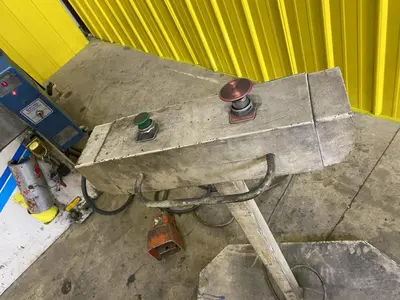

DUAL PLAM BUTTONS .............. YES
LIGHT CURTAINS ................. YES
AUTO LUBE SYSTEM ............... YES
MOTOR .......................... 30 HP
