USED 1985 CINCINNATI 230-8AS

Equipped With

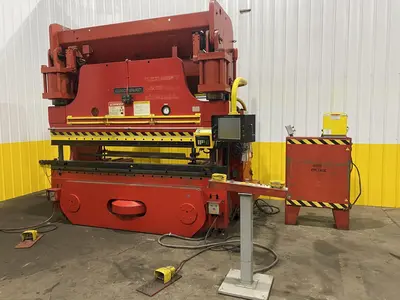

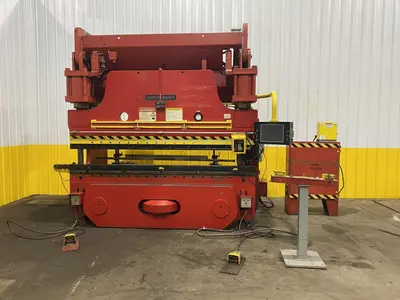

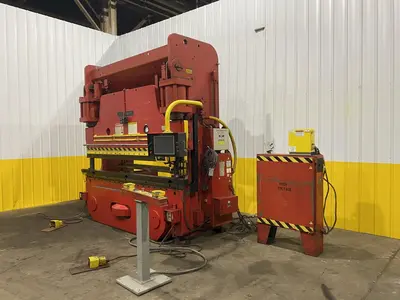

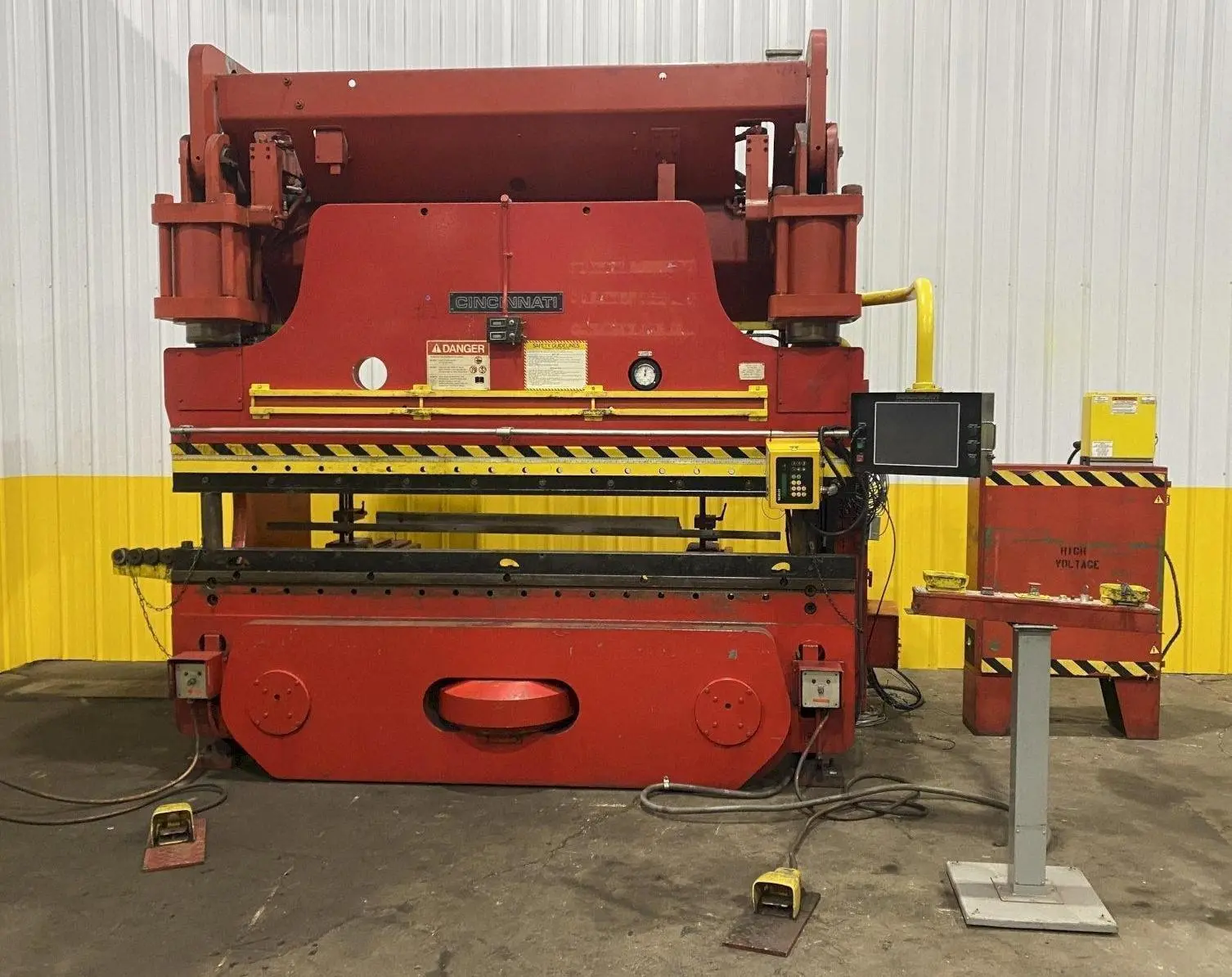

230 TON X 10' CINCINNATI MODEL #230-8AS HYDRAULIC CNC PRESS BRAKE W/ UPGRADED CONTROLS
NEW 1985

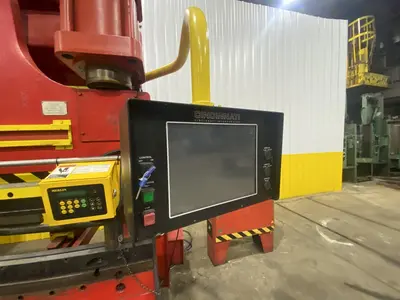

UPDATED TOUCHSCREEEN CONTROLS IN 2011
SPECIFICATIONS:
CAPACITY .......................... 230 TON
OVERALL LENGTH OF BED AND RAM ..... 10'
DISTANCE BETWEEN HOUSING .......... 8'6"
STROKE OF RAM ..................... 10"
OPEN HEIGHT ....................... 17"
CLOSED HEIGHT ..................... 7"
RAM ADVANCE SPEED ................. 101 IPM
RAM PRESS SPEED ................... 14 IPM
RAM RETURN SPEED .................. 95 IPM
POWER BACKGUAGE ................... 48"
AUTO CROWNING ..................... YES
FLOOR STANDING, NO PIT REQUIRED ... YES
ELECTRIC FOOT TRIP ................ YES
PEDESTAL STAND W/ PALM BUTTONS  ... YES
MOTOR ............................. 30 HP
APPROXIMATE WEIGHT .................29,000 LBS.
