Equipped With

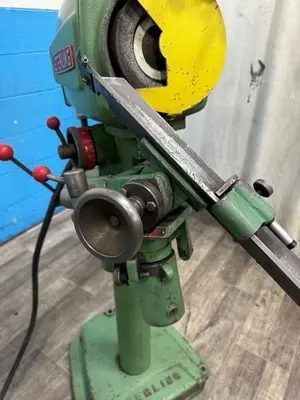

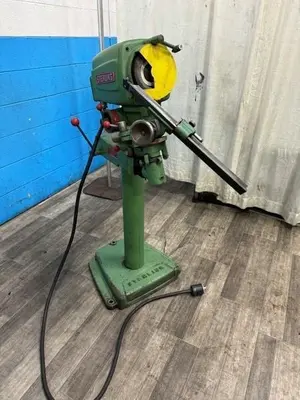

2-1/2 " STERLING MODEL DG DRILL GRINDER
NEW 1997
SPECIFICATIONS
SERIAL ........................ DG40129
MODEL ......................... DG
DRILL DIAMETER CAPACITY ....... 1/8" TO 2-1/2"
FLUTED DRILL RANGE ............ 2 - 3 - 4
DRILL LENGTH CAPACITY ......... 24"
ANGLE RANGE ................... 90 TO 140 DEGREES
GRINDING WHEEL SIZE ........... 6" X 1"
GRINDING WHEEL SPEED .......... 3450 RPM
WHEEL DRESSER ................. YES
PEDESTAL MOUNTED .............. YES
MOTOR ......................... 1/2 HORSEPOWER
