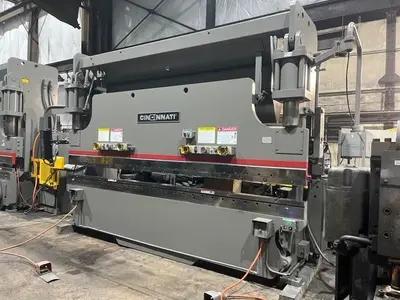

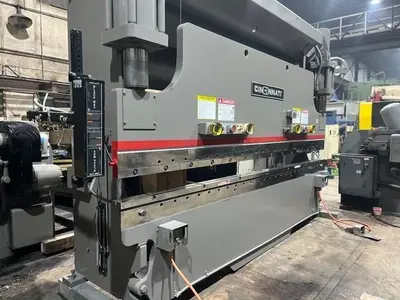

175 TON X 14' CINCINNATI MODEL 175CB CNC PRESS BRAKE
GENERAL SPECIFICATIONS
Capacity 175 TONS
Overall Length of Bed & Ram 14’
Distance Between Housings ` 12’6 3/4”
Stroke 10”
Open Height 17”
Closed Height 7”
Throat Clearance 8”
Speeds
Approach 180 Inch Per Minute
Form 8-16-40 Inch Per Minute
Return 200 Inch Per Minute
Width at Top of Bed 4 ½”
Main Motor Horsepower 15
EQUIPPED WITH
Electric Foot Switch
Palm Button Station
Link Black Max Safety Curtains
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders
Approximate Overall Weight 29500 Lbs
Approximate Overall Dimensions 14’6.5” L X 60”FB X 123” H
