Equipped With

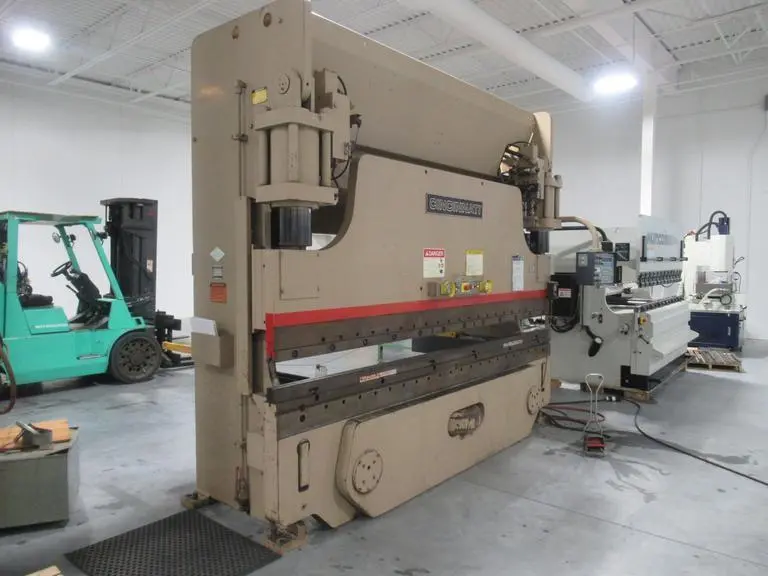

175 TON X 12' CINCINNATI FORM MASTER II CNC HYDRAULIC PRESS BRAKE WITH CROWNING
New 1998
Motor Driven with 25 HP, 3-Phanse, 60 Cycle, AC Motor and Controls
EQUIPPED WITH:

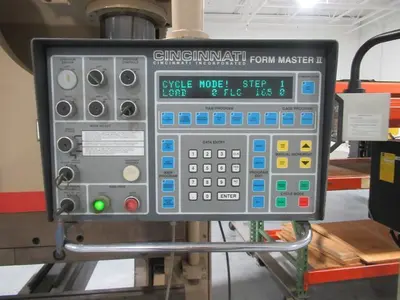

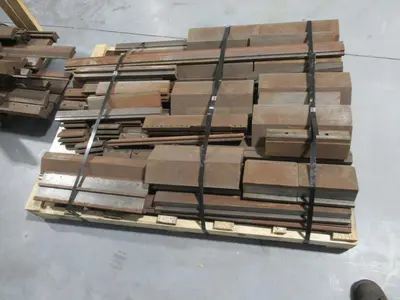

Cincinnati FormMaster II Controls, 175 Ton, 144" Bed and Ram, 126" Between Housings, 10" Stroke,Y1, Y2, X1, X2, Manual R, Ram Clamps, Lower Die Holder, Hydraulic Crowning, Dual Palms, Remote Foot Trip, Assorted Tooling & Manuals
SPECIFICATIONS:
Tonnage Capacity 175 Tons
Bed and Ram Length 12'
Distance Between Housings 10'6"
ram Approach Speed 260 IPM
Bending Speed(s) Variable 1-65 IPM
Ram Return Speed Variable 1-290 IPM
Programmable Controlled Axes Y1, Y2, X1, X2, Crowning, Manual R
Programmable Backgauge Distance 24"
Throat Depth 10"
Maximum Ram Stroke 8"
Max. Open Height 17"
Closed Height 7"
Approximate Dimensions 160" L x 60" W x 125" H
Approximate Weight 31,050 Lbs.
