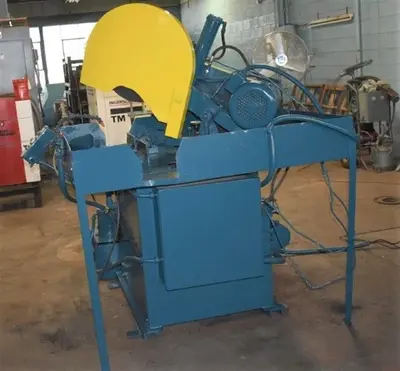

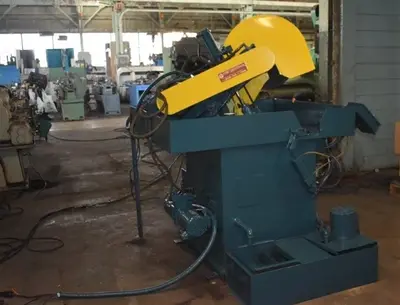

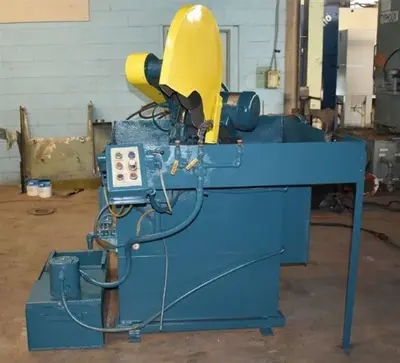

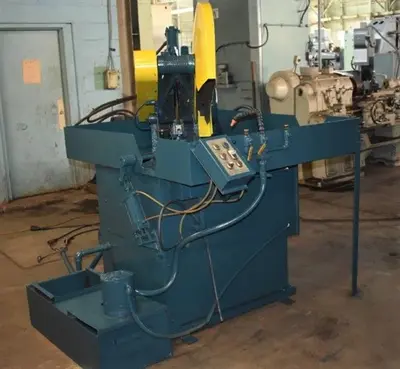

22" EVERETT #20AA22 ABRASIVE-BLADE MITERING CUT-OFF SAW w/HYDRAULIC HEAD FEED - 6" DIAMTER SHAPE CAPACITY - 3" DIAMETER SOLID CAPACITY - 20 HP MOTOR

Equipped With
22" EVERETT #20AA22 ABRASIVE-BLADE MITERING CUT-OFF SAW w/HYDRAULIC HEAD FEED - 6" DIAMTER SHAPE CAPACITY - 3" DIAMETER SOLID CAPACITY - 20 HP MOTOR
SPECIFICATIONS:
DIAMETER CAPACITY SOLIDS, 90-DEGREES 3"
CAPACITY MOST SHAPES, 90-DEGREES 6"
DIAMETER CAPACITY SOLIDS, 45-DEGREES 2.5"
CAPACITY MOST SHAPES, 45-DEGREES 4"
SAW BLADE DIAMETER 20" OR 22"
ARBOR SHAFT DIAMETER 1"
SPINDLE MOTOR, HORSEPOWER/RPM 20 HP/3450 RPM
WEIGHT, APPROXIMATELY 850 LBS
EQUIPPED WITH:
HYDRAULIC POWER FEED HEAD
AIR OPERATED "V" SHAPED CHAIN HOLDDOWN VISE
60-DEGREE ANGLE-MITRE CUTTING HEAD
COOLANT SYSTEM (TANK & PUP)
