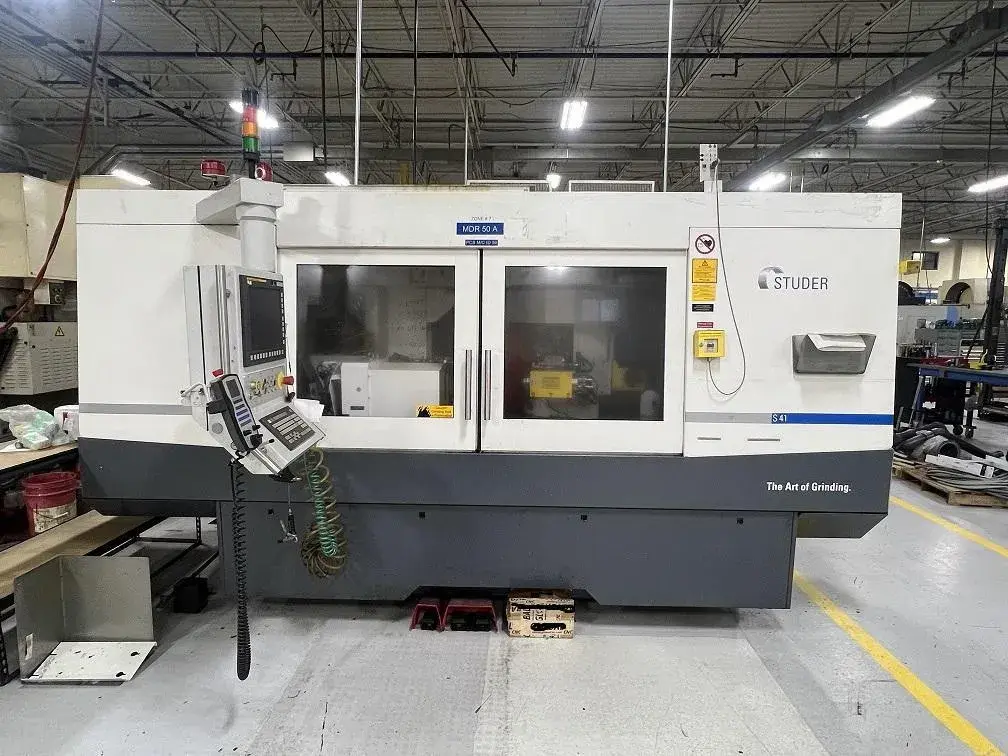

STUDER S41 CNC CYLINDRICAL OD/ID GRINDER
New: 2015
HIGHLIGHTS:
(1) OD Wheel – 4,500 RPM
(1) ID Spindle – 42,000 RPM
(1) Grooving Spindle for Splines
B Axis –45° to +225°
C Axis Workhead
Probing & Gauging
SPECIFICATIONS:
CNC Control: Yes
Type of CNC Control: Fanuc 31i-Model A
Center Height: 8.9 in / 226.06 mm
Center Distance: 39.4 in / 1,000.76 mm
Max Weight Between Centers: 550 lb / 249.48 kg
X Axis Travel: 13.8 in / 350.52 mm
Z Axis Travel: 45.3 in / 1,150.62 mm
Workhead Speed: 1,500 RPM
Workhead Power: 13.6 HP / 10.14 kW
C Axis: Yes
C Axis Index: 0.0001°
B Axis Indexing: –45° to +225°
Grinding Wheel Dimensions: 20" x 3.54" x 8"
Wheel Speed: 4,500 RPM
Wheelhead Motor: 20 HP
ID Spindle Speed: (2x) 42,000 RPM
Machine Dimensions: 154" x _ x 99"
Machine Weight: 20,000 lb / 9,071.84 kg
EQUIPPED WITH:

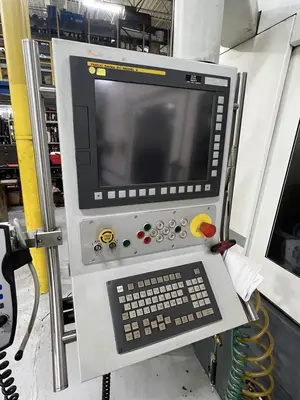

Fanuc 31i-Model A Control
(1) Fischer ID Spindle – 42,000 RPM T3

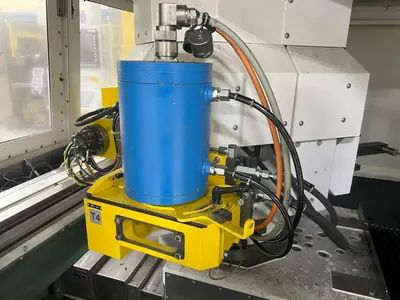

(1) Grooving Spindle T4
(1) OD Grinding Wheel – 15,748 SFPM T2
Transor Filtration System
Marposs Gauging
Dittel Balancing M6000
Workhead with C Axis

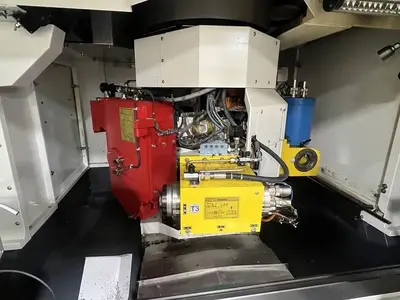

B Axis Wheelhead
No Tailstock
Probing H1 Touch Probe
Rotary Dresser
