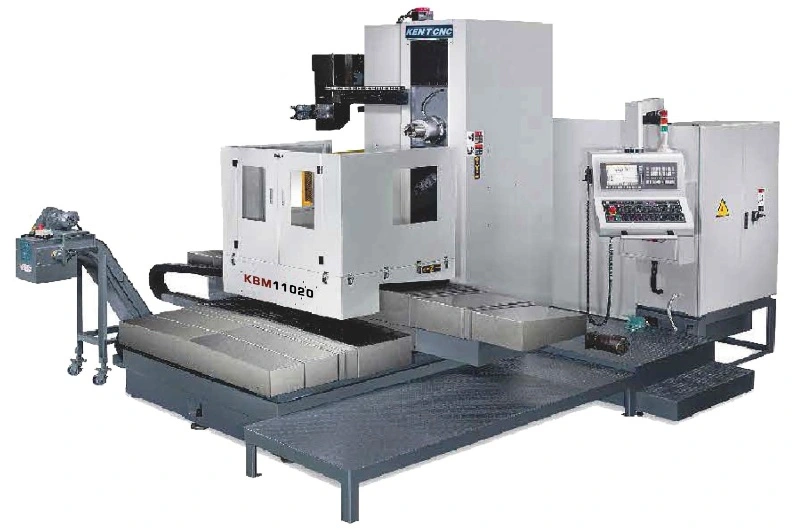

KENT USA KBM-11020 HORIZONTAL BORING MILL - NEW
PRODUCT FEATURES
#50 taper spindle, 78.7” x 59” hardened and ground table top
Precision ACME screws in X, Y, Z, & W axes
X, Y, Z, & W axes driven by AC motor
Compact operation panel
Meehanite® casting, with built in coolant reservoir in machine base
Coolant system
Centralized automatic lubrication
STANDARD ACCESSORIES
LINEAR SCALE ON X, Y, Z AXES
SPINDLE OIL COOLER
AUTOMATIC POWER OFF
HYDRAULIC UNIT
COOLANT SYSTEM
LUBRICATION SYSTEM
ALARM LAMP
WORK LAMP
M.P.G.
RS232C INTERFACE
HEAT EXCHANGER
CHIP CONVEYOR AND CART
LEVELING BOLTS & PADS
CONTROLLER MANUALS AND CIRCUIT DIAGRAM
OPERATION MANUALS
MACHINE INSPECTION LISTS
SPLASH GUARDS (AROUND WORK TABLE)
TOOL BOX
FANUC 0i-MD with STANDARD FUNCTION
OPTIONAL ACCESSORIES
Fanuc 0iMD Without ATC
Model
KBM-11022
Table size
78.7” x 55”(2000 x 1400 mm)
T-Slots
20 mm x 7
Maximum Loading
15,432 lbs(7000 kg)
Height From Ground
48”(1225 mm)
X Axis Travel
87”(2200 mm)
Y Axis Travel
78.7”(2000 mm)
Z Axis Travel
67”(1700 mm)
W Axis Travel
22”(550 mm)
Distance Between Spindle Center to Working Table
78.7”(0-2000 mm)
