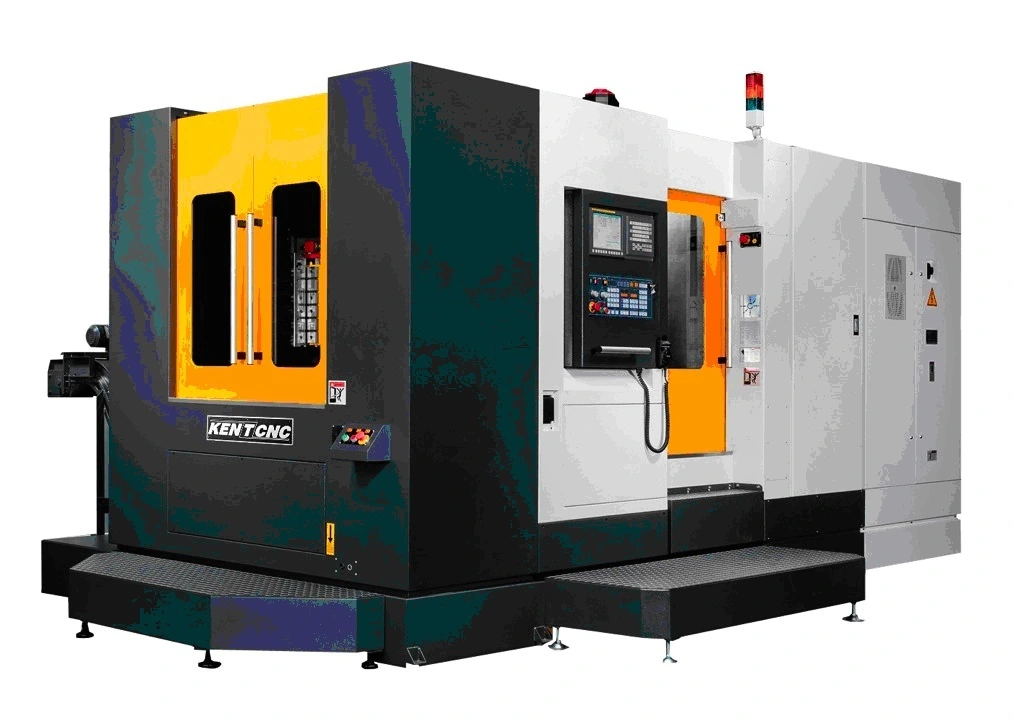

KENT USA JMH-800 CNC HORIZONTAL MACHINING CENTER - NEW
Reliability and Precision…these are the keywords you will repeatedly hear from the worldwide users of KENT CNC machine tools, if they are asked to describe the most remarkable characteristics of our machines. Achieving dramatically shorter lead-times and reduced machining costs in horizontal machining are mandatory requirements to competing in today's global manufacturing market arena. Whether your needs are entry-level or high-tech Horizontal Machining Centers, Kent CNC machines are designed to meet your highest demands and prevail in all industries worldwide. The Kent CNC High Output KH Series of 4 & 5-Axis machines with “Box-In-Box design is capable of “Done-In-One” manufacturing. This provides uninterrupted processes for fluid precision and faster production, while machining deep cores or cavities for improved surface finish. In a single set-up, Multiple Axis CNC machining centers combine all axes simultaneously to machine everything from extremely complicated geometries to simple basic shapes.
STANDARD ACCESSORIES
Rotary table size: 31.5” × 31.5” × 2pcs (1 degree)
Max.loading: 4,409 lbs
Three axes travel: 50” × 41.3” × 41.3”
Spindle nose to worktable surface: 1.97 ~ 43.3”
Fanuc 0imd controller (10.4” lcd)
Data server + manual guide i + aicc i function + ethernet
Spindle taper: BT 50
Spindle diameter: 3.93”
Spindle speed: 6000 RPM
Fully splash guard
60 tools chain type ATC (fanuc absolute type servo motor)
Heat exchanger
M code air blasting
Auto power off
Chain type chip conveyor+cart
Remote mpg (handwheel)
Rigid tapping
Spindle oil cooler
Spindle motor: 15/18.5 kw
CTS-20 bar w/ filter system
Powerful gear head (Hamada)
Slide ways: 2 pcs linear guide ways (roller type)
Full package of fanuc servo system
Transformer
OPTIONAL ACCESSORIES
Rotary Table in 0.001 Degrees
Deep hole adapter
CTS 50 BARS w/ Filter system
80 Tools ATC + Fanuc Absolute Servo Type
90 Tools ATC + Fanuc Absolute Servo Type
100 Tools ATC + Fanuc Absolute Servo Type
120 Tools ATC + Fanuc Absolute Servo Type
Oil skimmer
Oil mist collector Auto tools measurement (Laser Type)
Auto tools measurement (Fix Type)
Renishaw work piece measurement
Air condition for electric cabinet
DDS 8000RPM w/ oil cooler (By Alpha 15iT CTS motor)(ZF Gear box)
DDS 10000RPM w/ oil cooler (By Alpha 15iT CTS motor)(ZF Gear box)
Fanuc 0iMD 3D Die-Mole software package: Included: (AICCII + Jerk Control + Nano smoothing + Simple Spindle Sync + Bell Type Acc Adjustment + Machine Condition + Titled Working Plane)
Fanuc 31iMB Controller
Heidenhain iTNC 530 Controller
3 Axis linear scale (Heidenhain)
6 Table station with automation control system
3 Axis ball screw centre cooler system
TRAVELS S.A.E.
¨ X Axis Travel 50”
¨ Y Axis Travel 41.3”
¨ Z Axis Travel 41.3”
¨ Spindle Nose To Work Table 1.97 ~ 43.3”
¨ Spindle Center To Work Table 9.05 ~ 50.4”
TABLE
¨ Table Surface to Floor 51.9”
¨ Table Size 31.5” x 31.5”
¨ T-Slot / Bolt Spec. 24-M16 x P2.0
¨ Max Loading 4409 lbs
¨ Divide Angle 1°
SPINDLE
¨ Taper BT-50
¨ Method Spindle Gear Head
¨ Spindle Diameter 3.93”
¨ Spindle Speed 6000 RPM
RAPID FEEDRATE
¨ Spindle Motor (cont/30min) 20/25 (30/35HP)
¨ 3-Axes Cutting Feedrate 0.03/236 ipm
¨ 3-Axes Rapid Feedrate 590/473/473 ipm
¨ 3-Axes Min. Setting Unit 0.0000393”
ATC
¨ Tool Selection 60 (Opt. 90, 120)
¨ Max Tool Diameter 4.9”
¨ Max Tool Length 23.6”
¨ Max Tool Weight 44 lb
¨ Tool Shank P50T-I
¨ Tool-To-Tool Time 2.9 Sec.
APC
¨ Number of Pallets 2
¨ Method of Pallet Change Rotary
¨ Pallet Change Time 12 Sec.
MISCELLANEOUS
¨ Approximate Weight 60,627 lb
¨ Dimensions – Machine (LxW) 319” x 154”
