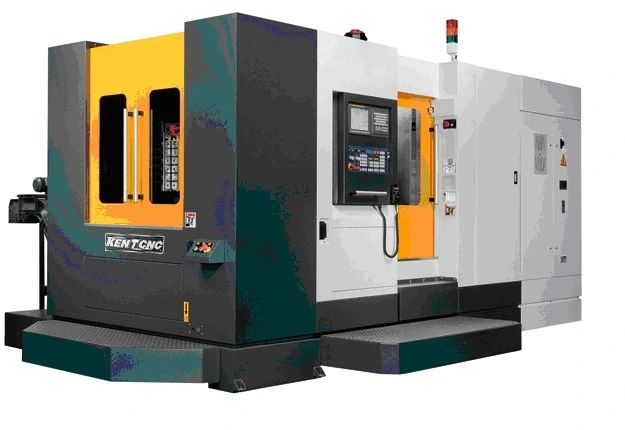

NEW KENT JMH-500

Equipped With
KENT USA JMH-500 CNC HORIZONTAL MACHINING CENTER - NEW
STANDARD ACCESSORIES
19.7” x 19.7” Rotary Table Size
993 lbs Max Loading
31.5” x 28.54” x 28.54” Three Axes Travel
5.91” ~ 34.45” Spindle Nose to Worktable Surface
Fanuc 0iMD Controller
CAT 40 Spindle Taper
2.75” Spindle Diameter
8,000 RPM Spindle Speed
Full Splash Guard
40-Tool chain type ATC
Heat Exchanger
M Code Air Blasting
Auto Power Off
Chain type chip conveyor & cart
Remote MPG (Handwheel)
Rigid Tapping
Spindle Oil Cooler
Spindle Motor: 20/25HP
Linear Guide Ways
Water Gun
Transformer
Two Year Parts Warranty
OPTIONAL ACCESSORIES
¨   Fanuc 31iMB Control
¨   ZF Gear Box
¨   Coolant Through Spindle (20 Bar)
¨   Coolant Through Spindle (50 Bar)
¨   60 Tools ATC (Servo Motor)
¨   80 Tools ATC (Servo Motor)
¨   90 Tools ATC (Servo Motor)
¨   100 Tools ATC (Servo Motor)
¨   120 Tools ATC (Servo Motor)
¨   Oil Skimmer
¨   Oil Mist Collector
¨   Auto Tool Measurement (Laser Type)
¨   Auto Tool Measurement (Fix Type)
¨   Renishaw Work Piece Measurement
¨   Air Condition for Electric Cabinet


TRAVELS
¨   X Axis Travel                                                                  31.5”
¨   Y Axis Travel                                                                   28.54”
¨   Z Axis Travel                                                                   28.54”
¨   Spindle Center To Table Surface                                 1.97 ~ 30.51”
¨   Spindle Nose To Table Center                                      5.91” ~ 34.45”
 PALLETS (Digital Servo)
¨   Size                                                                                   19.7” x 19.7”
¨   Bolt Holes Per Pallet                                                      25
¨   Max Table Load                                                              1,764 lbs
¨   Rotation RPM                                                                  25 rpm
¨   Standard Index Degree                                                  0.001
¨   Rotation Motor                                                                4 hp
¨   Repeatability                                                                   +/- 2 sec
AUTOMATIC PALLET CHANGER (Digital Servo)
¨   Number of Pallets                                                           2
¨   Number of Available Pallets in Pool                             12
¨   Pallet Change Method                                                    Rotary
¨   Pallet Change Time                                                        8 sec
 SPINDLE
¨   Taper                                                                                CT-40
¨   Bearing Diameter                                                            2.75”
¨   Drive Motor                                                                    20/25 HP
¨   Max Speed                                                                       8,000 RPM

AUTOMATIC TOOL CHANGER (Digital Servo)
¨   Tool Capacity                                                                  40 (Opt. 60, 90, 120)
¨   Max Tool Diameter                                                         3.34”
¨   Max Tool Length                                                             11.8”
¨   Max Tool Weight                                                             17.6 lb
¨   Selection Method                                                            Bi-Directional / Random
¨   Tool-To-Tool Time                                                         3-4 Sec.

MOTION CONTROL
¨   Rapid Traverse                                                               1,181 ipm(Opt.1,417)
¨   Cutting Feed Rate                                                           394 ipm

ACCURACY
Positioning (+/-)                                                                    0.0001”
Circularity                                                                        0.0002”

MISCELLANEOUS
Approximate Weight                                                     29,768 lb
Floor Dimensions – Machine (LxW)                                 151.1” x 190.35”
