USED 1958 WEBSTER & BENNETT NOT PROVIDED

Equipped With

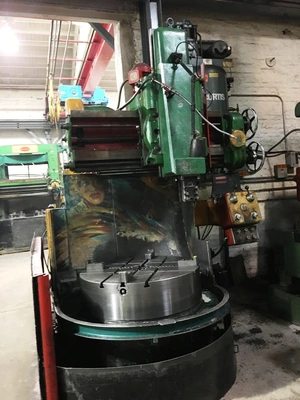

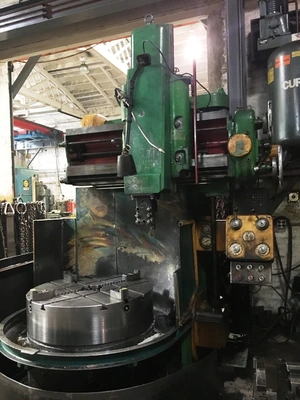

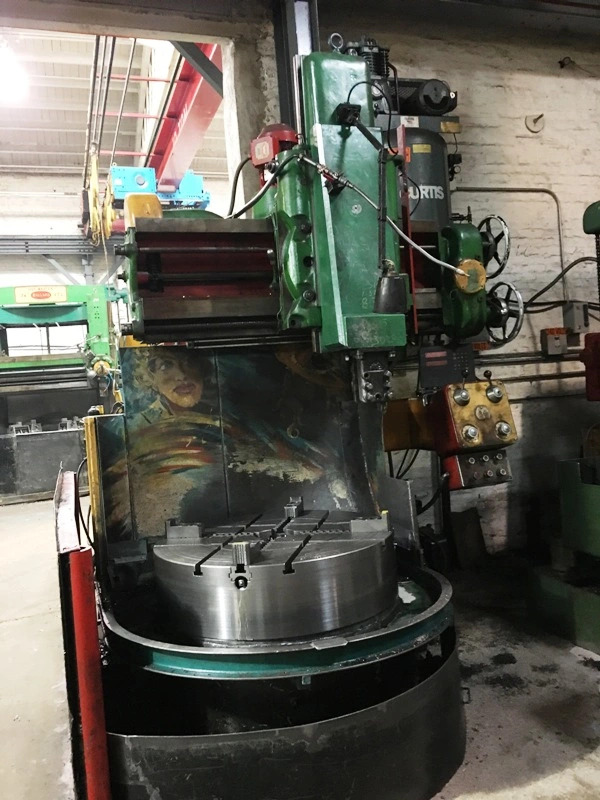

36" WEBSTER & BENNETT VERTICAL BORING MILL
Serial No. 512450
Motor Driven with 20 HP, 3-Phase, 60 Cycle AC Motor & Controls
EQUIPPED WITH: Heidehain 2-Axis Digital Readout, 36" 4- Jaw Chuck
SPECIFICATIONS:
Table Diameter                                       36″
Maximum Swing                                        46″
Maximum Diameter Turned With Turret                  37″
Maximum Height Under Face of Turret                  37″
Height Under Cross Rail w/Adjustable Stop Bar        27 1/2″
Vertical Travel of Turret Slide                      34″
Table Speeds (12)                                    13.5 - 300 RPM
Feeds (12)                                          .10 to 5.00 IPR
Approximate Dimensions                                                  74" L-R x 102" F-B x 131" H
Approximate Weight                                                          14,000 Lbs.
