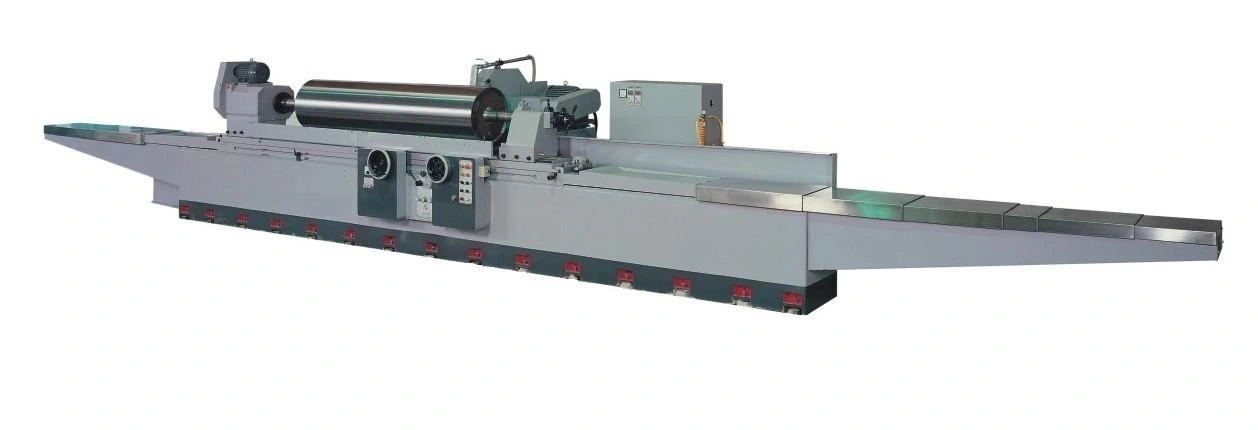

NEW KENT KGC-56100NC

Equipped With
21.6" x 40" KENT USA KGC-56100NC HEAVY DUTY "PLAIN" CYLINDRICAL GRINDER - NEW
Outstanding Features:

Hydrostatic lubricated Spindle and Slideways allows for smoothest movement with maximum rigidity
Automatic lubrication with safety interlock to prevent machine operation when there is no lubrication present
Schneider 5” touch operation panel and Yaskawa 1.8 KW servo motor for Z-travel(grinding wheel travel
STANDARD ACCESSORIES
Grinding Wheel and Flange
2 Point Steady Rest (2 Set)
Diamond Tool For Dresser
Coolant System
Splash Guard
Carbide Tipped Work Centers (2 Pieces)
Balance Arbor
Tool Box
OPTIONAL ACCESSORIES
Table Mount Wheel Dresser
3 Point Steady Rest
Hydraulic 3 Jaw Chuck With Backplate
Magnetic Separator Coolant System
Paper Filter and Magnetic Separator Unit
Wheel Balancing Stand
Fagor DRO and Linear Scale (Z-Axis)

GENERAL SPECIFICATIONS: KGC-56100NC
Max. Grinding Diameter 21.6"
Max. Grinding Length 40"
Max Load Between Centers 2,200 Lbs
Swivel Angle Workhead NA
Grinding Wheel Size 28" x 2"-4" x 8"
Grinding Wheel Speed 890 RPM
Table Speed 0-3500 mm/min
Movement Per Graduation 0.0002"
Movement Per Turn of Handwheel 0.08"
Min Feed (NC, Servo Control) 0.005mm (MPG)
Swivel Angle 2 Deg / 1 Deg
Workhead RPM 25-165 RPM (Inverter)
Workhead Spindle Taper MT#5
Tailstock Quill Stroke 1.2"
Tailstock Spindle Taper MT#5
Grinding Wheel Motor 15 HP
Workhead Motor 2 HP
Grinding Lubrication Pump Motor 1/2 HP
Coolant Pump Motor 1/4 HP
Hydraulic Tank 10 Gal
Coolant Tank 32 Gal
