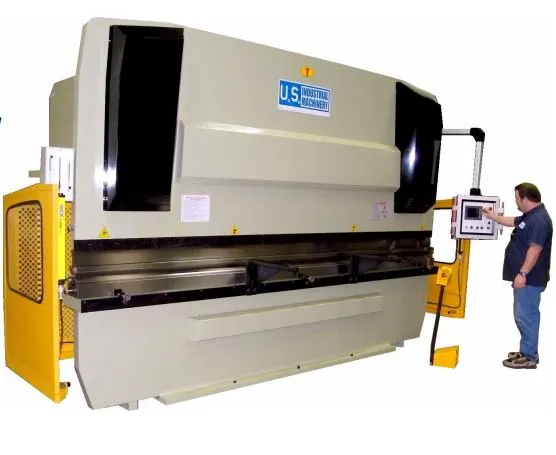

NEW U.S. INDUSTRIAL USHB200-10

Equipped With
NEW 200 TON x 10' US INDUSTRIAL MODEL USHB200-10 CNC HYDRAULIC PRESS BRAKE
Base Price POR
STANDARD EQUIPMENT
Ram Deflection Adjustment
Mechanical Ram Depth Control
Massive Torsion Bar For Parallelism
Forged Heavy Duty Cylinder & Cylinder Body
Three Speed Ram
Rapid Approach, Bending Cycle & Rapid Retreat
Bottom Time Delay
All Steel Constuction
Single, Continuous & Single Cycle
Ram Takes Standard American Tang Tooling (1/2" x 5/8")
Space Between Ram Tool Clamps Allow For Deep Box Bending
Bed Has Slot For Standard American Tang Tooling
Bed Also Holds Tooling With Capture Clamps
Free Goosenext Punch & Multi-Opening Die For Up To 90º Forming In 10 Gauge Mild Steel
2-Axis Color Graphic CNC Back Gauge
Controls BOTH Bend Angle and Backgauge Position. Comes with 6” Color LCD touch screen. Code and Graphic programming included.
Graphic allows 10 bends per program/cross-section. Controls features a Tool library, Metric/Inch switchable, Auto bend sequence,
Auto retract of  backgauge, Spread length, Interference bend alert, Calculated bend allowance,
Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup.
CNC Controlled Mechanical Auto Crown
Sick Model 4000 Light Curtain System
OPTIONAL EQUIPMENT
Fiessler Akas II Laser Guarding $7,995.00
Pilz PSENvip LED Safety Guarding $8,495.00
Third Axis (Back Gauge Height) $4,995.00
High Speed Servo Back Gauge $4,995.00
Training At US Industrial Factory No Charge
On Site Training (Less Than 300 Miles From Memphis, TN) $2,995.00
On Site Training (More Than 300 Miles From Memphis, TN) $3,995.00
On Site Training (Outside Continental USA) POR
SPECIFICATIONS
Working Pressure
200 Tons
Overall Length Of Table
157.4"
Distance Between Housing
124"
Throat Depth
12.5"
Stroke Adjustment Of Ram
2.75"
Ram Travel
5.9"
Open Height
16.3"
Rapid Ram Travel Speed
2.4"/Sec
Rapid Ram Retreat Speed
2.0"/Sec
Pressing Speed
Dependent On Tool Load
Backgauge Travel
24"
Motor Horsepower
15 HP
Hydraulic Oil Capacity
97 Gal
Approx. Overall Weight
23,148 lbs
Approx. Dimensions
179" x 64" x 101"H
Warranty:  1 Year Parts & Labor
Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used
for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented
and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO
warranty on these items.
