NEW U.S. INDUSTRIAL USHB88-10HM

Equipped With

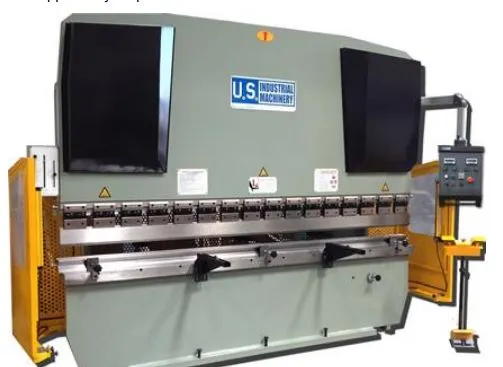

NEW 88 TON x 10' US INDUSTRIAL MODEL USHB88-10HM  HYDRAULIC PRESS BRAKE WITH FRONT OPERATED BACKGAUGE AND POWER RAM ADJUST
Base Price POR
STANDARD EQUIPMENT
Power Front Operated Back Gauge, Motorized With Fine Adjustment Hand Wheel
Power Ram Depth Control, Motorized With Fine Adjustment Hand Wheel

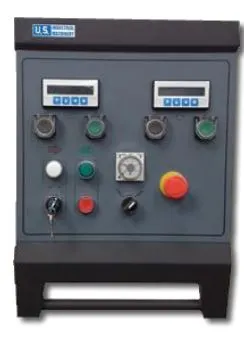

Digital Displays For Backgauge Position and Ram Position
All Steel Construction
SICK deTec2 Core Light Curtain
Ram Takes Standard American Tang Tooling (1/2" x 5/8")
Space Between Ram Tool Clamps Allow For Deep Box Bending
Bed Has Slot For Standard American Tang Tooling
Bed Also Holds Tooling With Capture Clamps
Free Goosenext Punch & Multi-Opening Die For Up To 90º Forming In 10 Gauge Mild Steel
Sick Model 4000 Light Curtain System
OPTIONAL EQUIPMENT
Fiessler Aklas II Laser Guarding $7,995.00
Pilz PSENvip LED Safety Guarding System $8,495.00
On Site Training (Less Than 300 Miles From Memphis, TN) $2,995.00
On Site Training (More Than 300 Miles From Memphis, TN) $3,995.00
On Site Training (Outside Continental USA) POR
SPECIFICATIONS
Working Pressure
88 Tons
Overall Length Of Table
125.9"
Distance Between Housing
106.2"
Throat Depth
9.8"
Stroke Adjustment Of Ram
1.96"
Ram Travel
3.93"
Open Height
13.7"
Rapid Ram Travel Speed
2.4"/Sec
Rapid Ram Retreat Speed
2.0"/Sec
Pressing Speed
Dependent On Tool Load
Backgauge Travel
24"
Motor Horsepower
10 HP
Hydraulic Oil Capacity
79 Gal
Approx. Overall Weight
14,332 Lbs
Approx. Dimensions
148" x 64" x 90"H
Warranty:  1 Year Parts & Labor
Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used
for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented
and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO
warranty on these items.
