NEW U.S. INDUSTRIAL USR5375

Equipped With

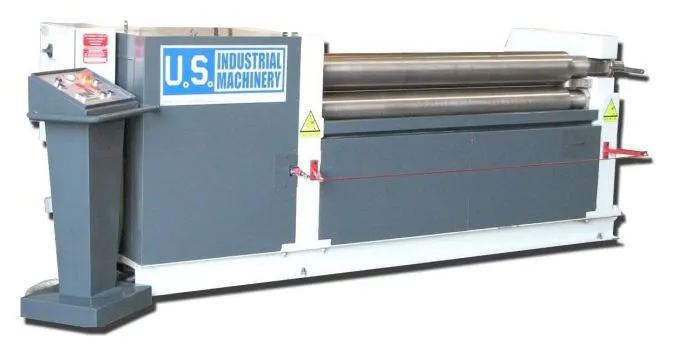

NEW 5' x 3/8" US INDUSTRIAL MODEL USR5375 INITIAL PINCH BENDING ROLL
BASE PRICE: POR
STANDARD EQUIPMENT
Powered Roll Adjustment & Manual Precision Pinch Roll Adjustment
Top Roll Manual Swingout
Emergency Trip Line
Pedestal Control
Quick Roll Adjustment
Roll Position Indicators
Crowned Rolls
Low Voltage Push Button Controls
OPTIONAL EQUIPMENT
Hardened Rolls $995.00
Cone Rolling Attachment $995.00
LED Readout With Memory $1,995.00
Hydraulic Drop-End                                        $1,995.00
SPECIFICATIONS
Capacity
5' x 3/8" Mild Steel @ 65,000 PSI
Pre Bend Capacity
3/8" Mind Steel @ 65,000 PSI
Roll Diameter
6.7" On All Three Rolls
Speed
12.5 FPM
Main Drive Motor
5.5 HP Reduction Gear Drive
Adjustment Motor
3 HP
Approx. Dimensions
127" x 54" x 44"H
Net Weight
4,150 Lbs
Voltage
220/440 Volts, 3 Phase
