NEW U.S. INDUSTRIAL USR630
Specs
Equipped With

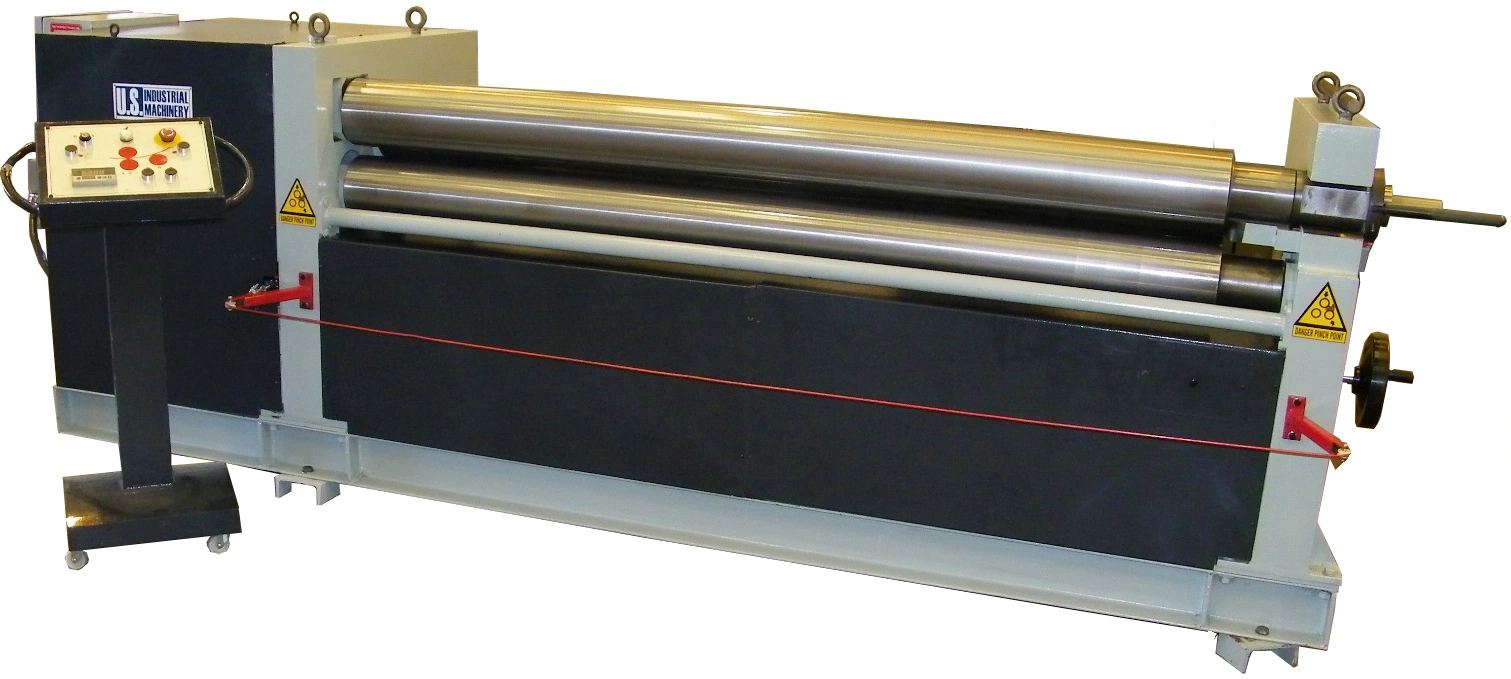

NEW 6' x 5/16" US INDUSTRIAL MODEL USR630 INITIAL PINCH BENDING ROLL
BASE PRICE: POR
STANDARD EQUIPMENT
Powered Roll Adjustment & Manual Precision Pinch Roll Adjustment
Top Roll Manual Swingout
Emergency Trip Line
Pedestal Control
Quick Roll Adjustment
Roll Position Indicators
Crowned Rolls
Low Voltage Push Button Controls
Hardened Rolls
Cone Rolling Attachment
LED Readout With Memory
Hydraulic Top Roll Swing Out
SPECIFICATIONS
Capacity
6' x 5/16" Mild Steel @ 65,000 PSI
Pre Bend Capacity
5/16" Mind Steel @ 65,000 PSI
Roll Diameter
6.7" On All Three Rolls
Speed
12.5 FPM
Main Drive Motor
5.5 HP Reduction Gear Drive
Adjustment Motor
3 HP
Approx. Dimensions
144" x 54" x 44"H
Net Weight
6,800 Lbs
Voltage
220/440 Volts, 3 Phase
