NEW U.S. INDUSTRIAL USR825

Equipped With

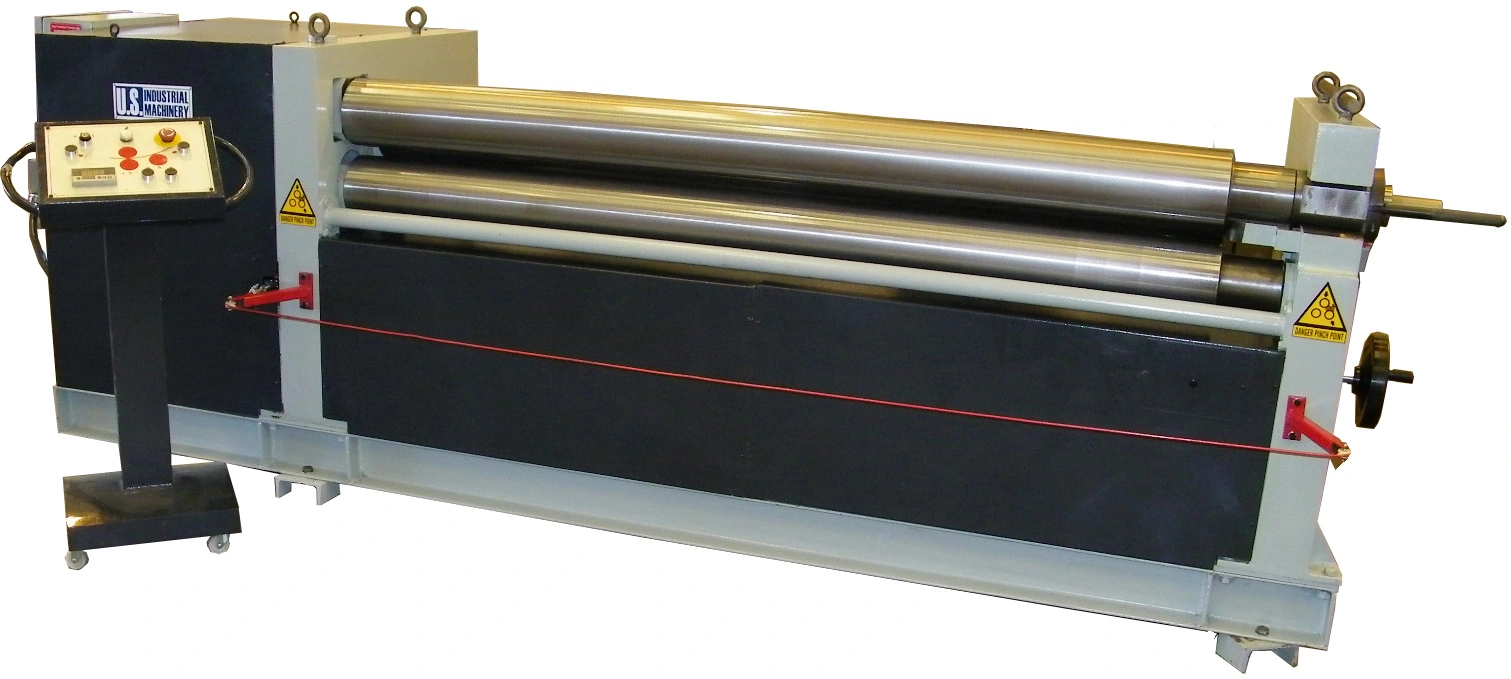

NEW 8' X 1/4" US INDUSTRIAL MODEL USR825 INITIAL PINCH BENDING ROLL
BASE PRICE: POR
STANDARD EQUIPMENT
Powered Roll Adjustment & Manual Precision Pinch Roll Adjustment
Top Roll Manual Swingout
Emergency Trip Line
Pedestal Control
Quick Roll Adjustment
Roll Position Indicators
Crowned Rolls
Low Voltage Push Button Controls
SPECIFICATIONS
Capacity
8' x 1/4" Mild Steel @ 65,000 PSI
Pre Bend Capacity
1/4" Mind Steel @ 65,000 PSI
Roll Diameter
7.4" On All Three Rolls
Speed
12.5 FPM
Main Drive Motor
5.5 HP Reduction Gear Drive
Adjustment Motor
3 HP
Approx. Dimensions
160" x 54" x 44"H
Net Weight
8,025 Lbs
Voltage
220/440 Volts, 3 Phase
