NEW ACRA 8VL

Equipped With

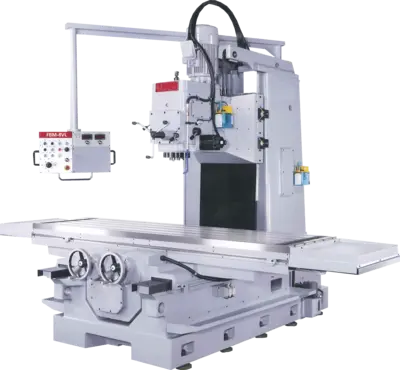

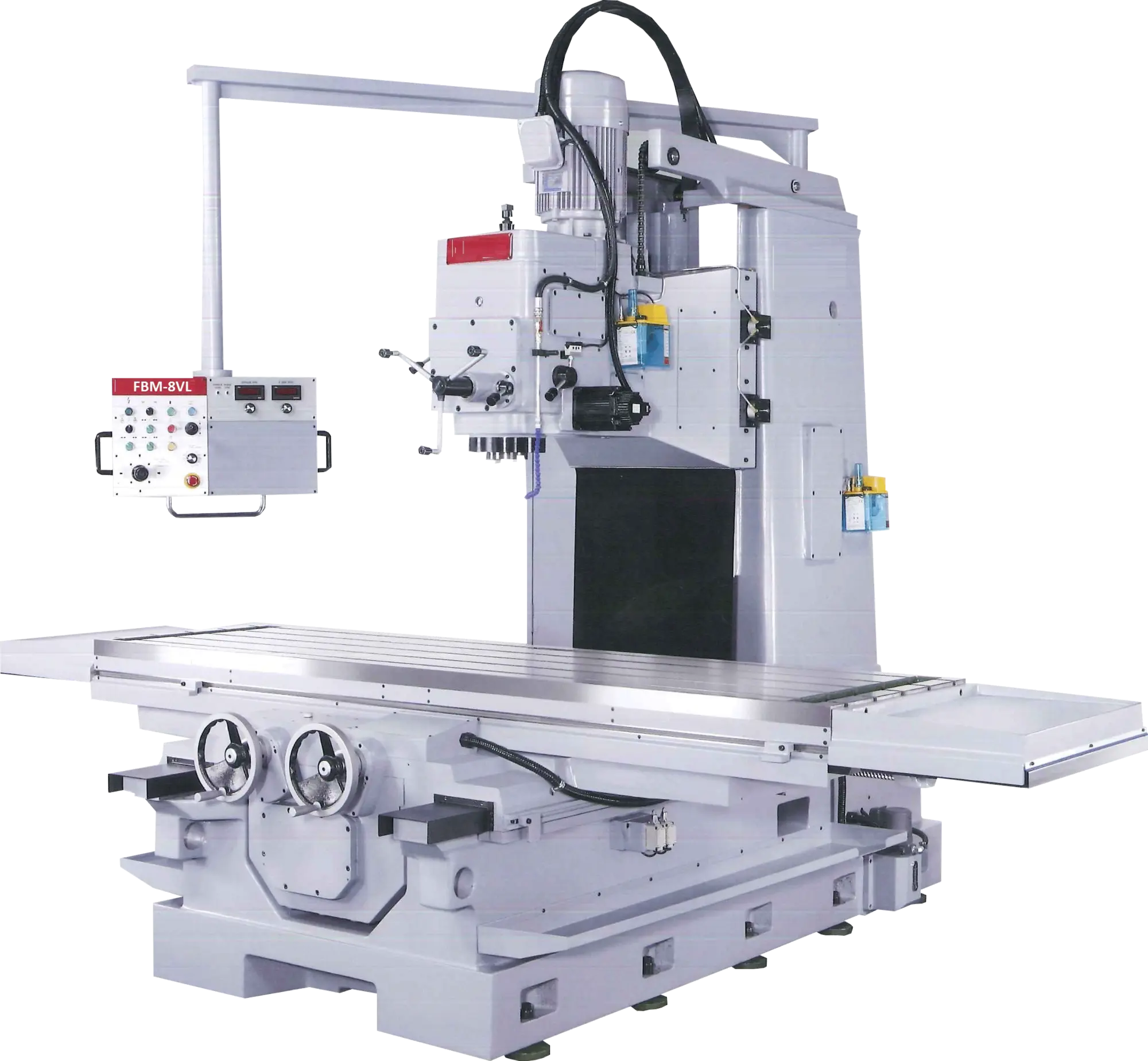

ACRA MODEL 8VL HEAVY DUTY BED TYPE VERTICAL BORING & MILLING MACHINE
• Full Geared Drive Spindle with 2-ranges variable speed, powerful and easy operating
• Table Feeding System equipped with precision ball screws and powerful servo motor ensure the table movement smoothly.
• The X, Y, & Z Axis equipped with pneumatic clamp device.
• The X-Axis could be extended up to 2500 mm with 2 sub-slide way on request.
Table & Saddle:
• The Table and Saddle are made of high-quality cast iron which has been carefully stress relieved.
• Way surfaces are hand scraped and finished
Feed Box:
• Table and Saddle feed can be driven by power or manual operation, and is easy to change speeds and to operate.
• Because of the large range of speeds, it is simple to go from low speed heavy cutting to high speed
finishing cutting.
Backlash Eliminator:
• Table feed system is equipped with easy adjustable backlash eliminator to increase operating stability and cutting efficiency.
• Large supporting surface and narrow square guide ways provide stable and smooth sliding.
Accuracy of Table & Saddle:
• Table and saddle are made of high quality cast iron, treated through stress relieving.
• The sliding surfaces are scrapped and finished.
• The upper, rear and front reference surfaces are ground, T-slots are correctly machined. So that the flatness, parallelism and squareness all meet the requirements of operation and are convenient in setup the work pieces.
Specifications:
Table Travel X (Longitudinal):                                78.74”
Table Travel Y (Cross):                                           31.5”
Vertical Spindle Head Travel (Vertical):                 27.56”
Vertical Spindle Nose to Tabletop:                       2.75” ~ 30.3”
Vertical Spindle Center to Column Front:            31.5”
Table Working Area:                                             29.5” x 106.3”
T slot (Wide x No. x Pitch):                                   0.7” x 5 x 5.9”
Tabletop to Floor:                                                 35.43”
Spindle Nose:                                                       ISO R297 No.50
Vertical Spindle Speeds:                                       45-1,500 Infinitely Variable
Z-Axis Feeds (Vertical Spindle):                            0.12 ~ 11.81”/min
Rapid Traverse (Longitudinal & Cross):                122”/min
Feed Rates (Longitudinal & Cross):                      1.1” ~ 39.37”/min
Change of Feeds:                                                  Infinitely Variable
Motors:
     Vertical Spindle:                                               AC 20 HP
     Feed: Servo Motors,                                         X & Y-Axis: 4.7 HP, Z-Axis: 1.75 HP
     Lubrication:                                                      AC 3.5W-2P
     Cutting fluid:                                                    AC 1/6 HP-2P
Voltage:                                                                220V AC~3 PH
Weight                                                                  26,000 lbs
Dimensions                                                           225 × 121 × 115 in
Standard Equipment:
• Coolant System.
• Auto Lubrication System.
• Draw Bar.
• Leveling Blocks.
• Automatic Table Feeds with Rapid Traverse.
• Tools and Toolbox.
• Hardened & Ground Box ways.
