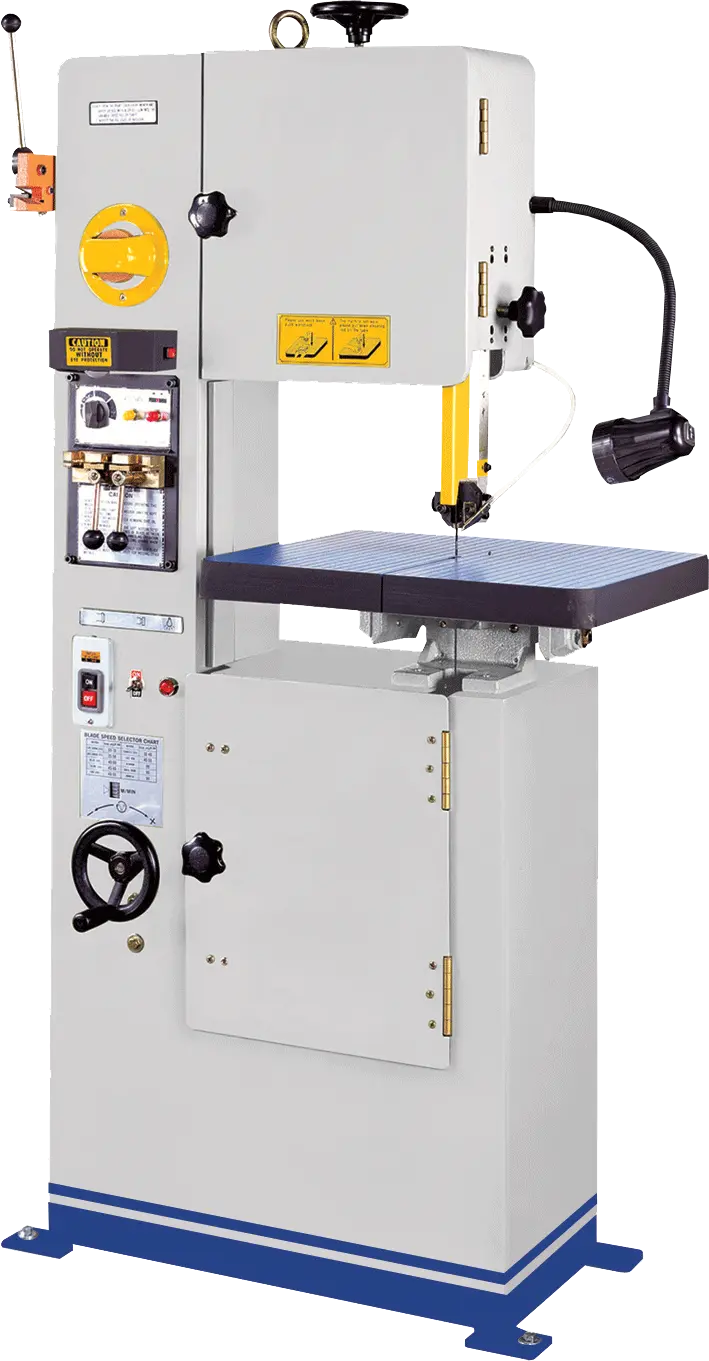

NEW ACRA KV-45

Equipped With
ACRA MODEL KB-45 VERTICAL MANUAL METAL CUTTING BANDSAW (3 PHASE)
Acra’s KB-45 Robust Vertical Manual Metal Cutting Bandsaw with an adjustable Tilt Table that allows cutting of steel or alloy plate & sections, PVC or composites. Made in Taiwan and featuring the following:
• Blade Tracking
• Saw Guide Holder
• Blade Tension Control
• Variable Speed Adjustment
• Free Wheel Control
• Control Switch
• Angle Adjustment for Work Table
Specifications:
Throat Depth:                         17-15/16″
Work Height:                          10-1/16″
Table Size:                               23-1/2″ x 19-1/2″
Table Inclination (4-Ways):     15 Degree
Saw Blade Length:                  137-3/8″
Saw Blade Width:                    1/8″ – 5/8″
Saw Blade Speeds:                   85-375 FPM
Butt Welder Capacity:              2.4KVA 1/8″-5/8″
Horsepower:                            1 HP
Voltage:                                    230/460V AC ~ 3 Phase
Weight                                     814 lbs
Dimensions                             45 × 28 × 81 in
Standard Equipment:
• Saw Blade Butt Welder with integrated Annealing Unit.
• Blade Shear and Grinder.
• Built-in Blade and Tire cleaning brush.
• Low Voltage Working Lamp.
• One set of required tools.
• One instruction and parts manual.
• Electro-Magnetic Switch for overload protection.
• Blade Guides
• Saw Blade
• Speed Indicator
• Variable Speed Drive
